SN54ALVTH16373 16-BIT TRANSPARENT D-TYPE LATCHES

The ’ALVTH16373 devices are 16-bit transparent D-type latches with 3-state outputs designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirect.

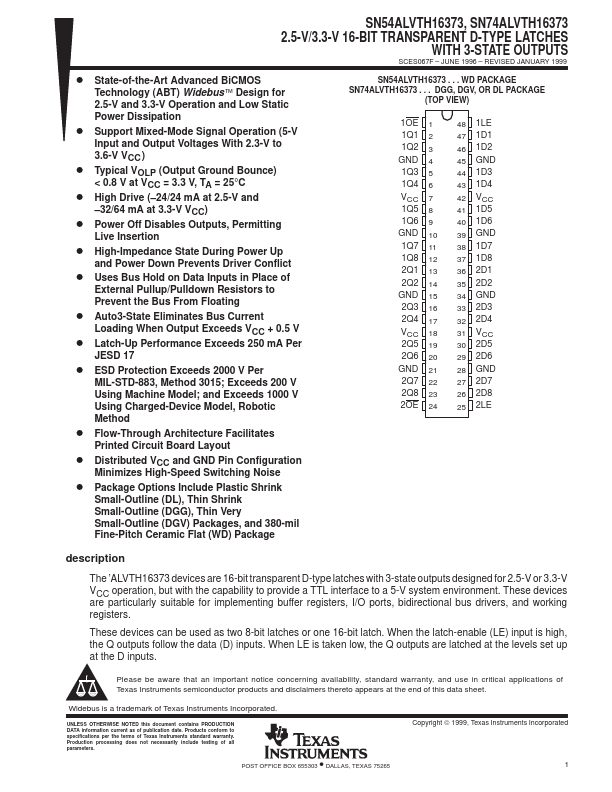

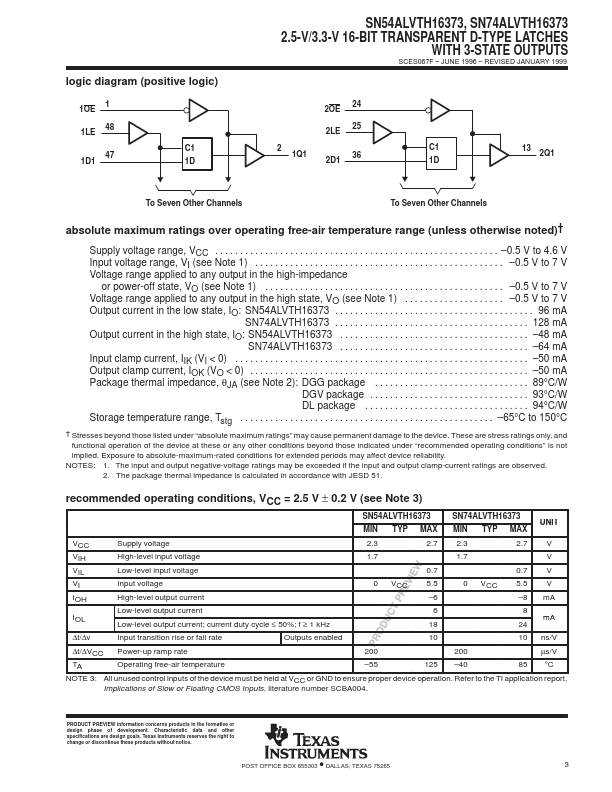

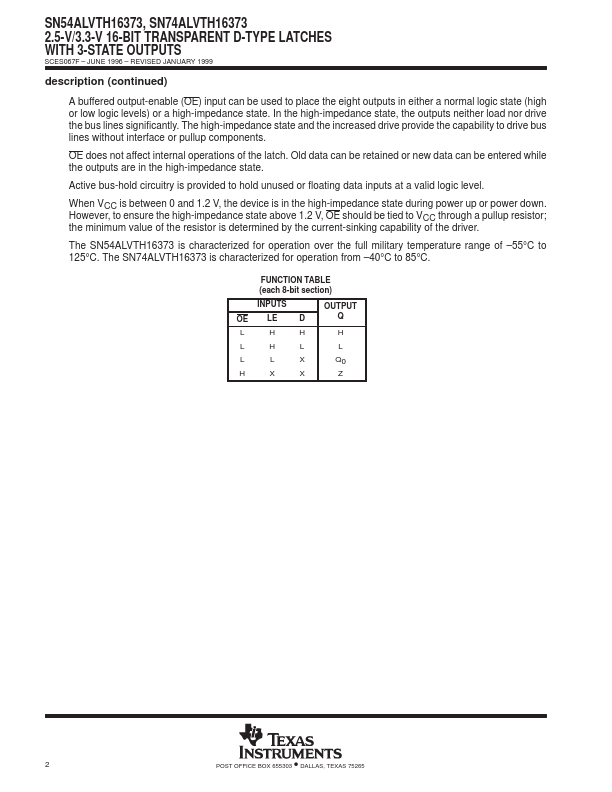

SN54ALVTH16373, SN74ALVTH16373 2.5-V/3.3-V 16-BIT TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS SCES067F JUNE 1996 REVISED JANUARY 1999 D State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus ™ Design for 2.5-V and 3.3-V Operation and Low Static Power Dissipation D Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V VCC ) D Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C D High Drive ( 24/24 mA at 2.5-V a.

SN54ALVTH16373 Datasheet (561.13 KB)
