SN54ALVTH16601 18-BIT UNIVERSAL BUS TRANSCEIVER

The ’ALVTH16601 devices are 18-bit universal bus transceivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices combine D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked m.

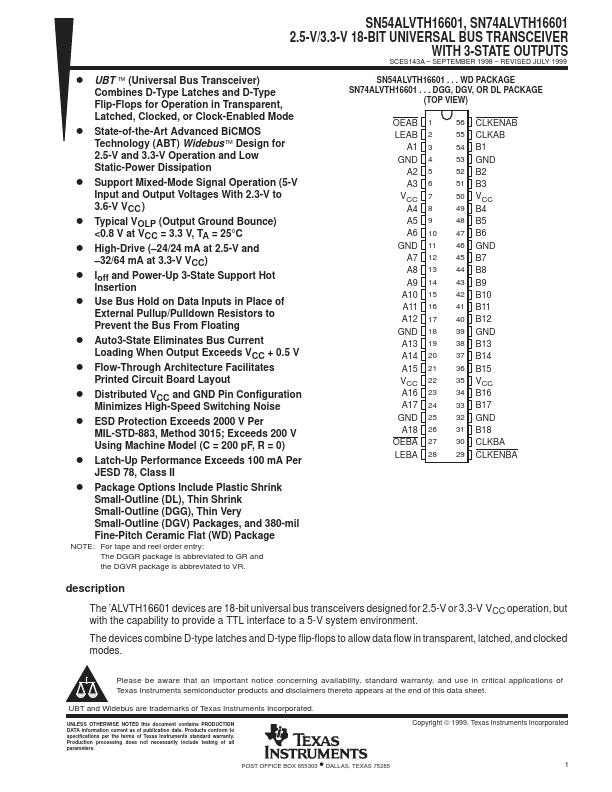

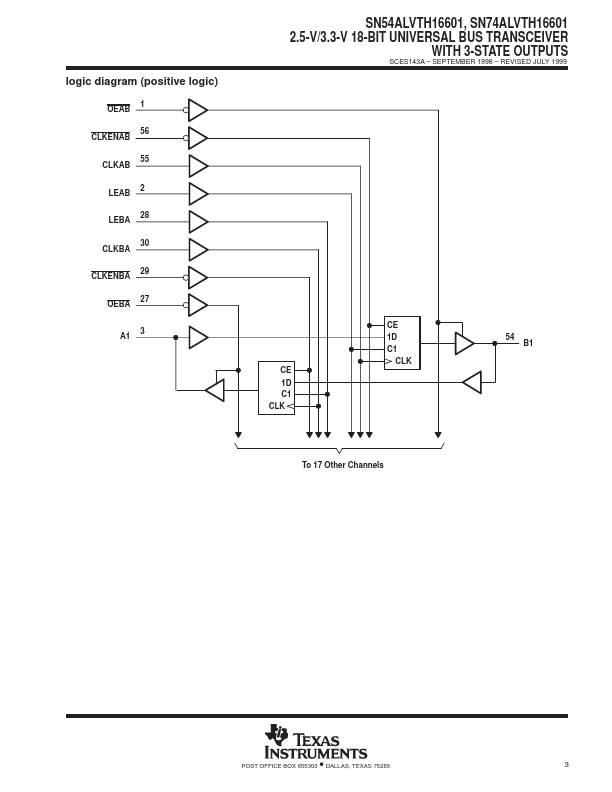

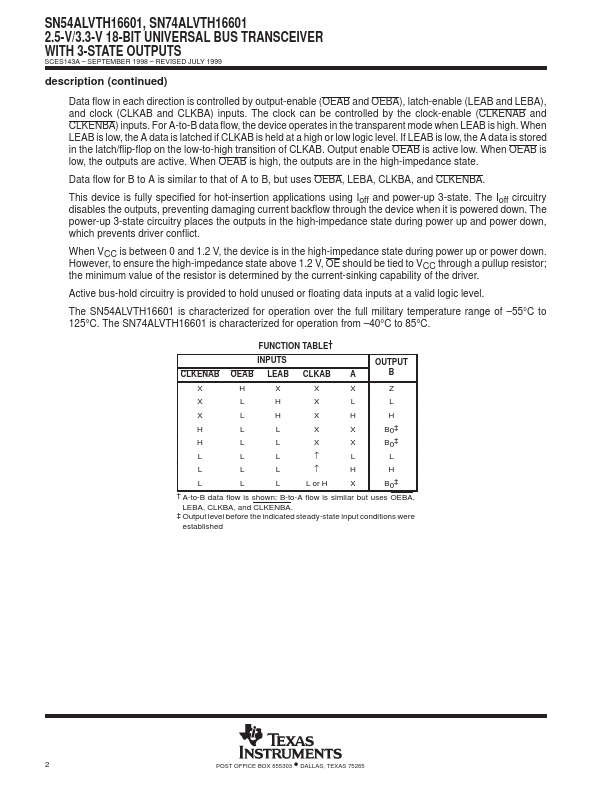

SN54ALVTH16601, SN74ALVTH16601 2.5-V/3.3-V 18-BIT UNIVERSAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS SCES143A SEPTEMBER 1998 REVISED JULY 1999 D UBT ™ (Universal Bus Transceiver) Combines D-Type Latches and D-Type Flip-Flops for Operation in Transparent, Latched, Clocked, or Clock-Enabled Mode D State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus ™ Design for 2.5-V and 3.3-V Operation and Low Static-Power Dissipation D Support Mixed-Mode Signal Operation (5-V Input and Out.
