SN54ALVTHR16245 16-BIT BUS TRANSCEIVERS

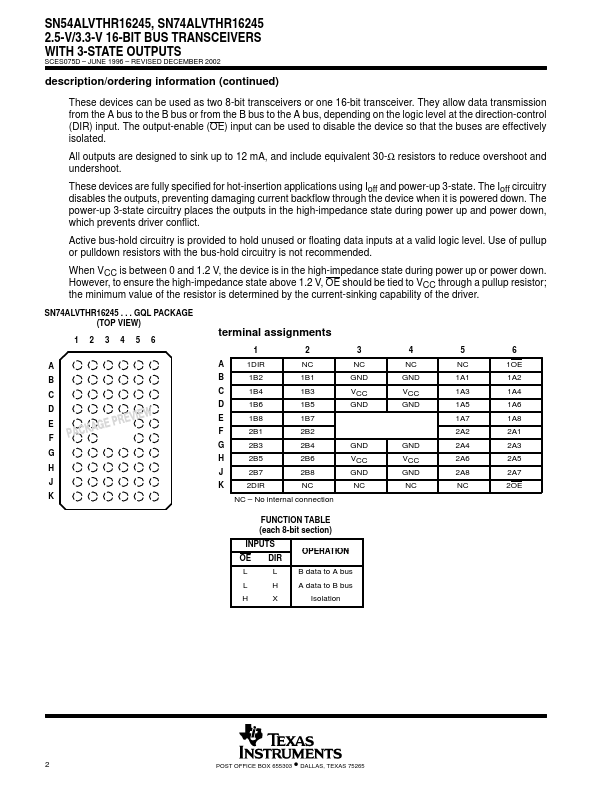

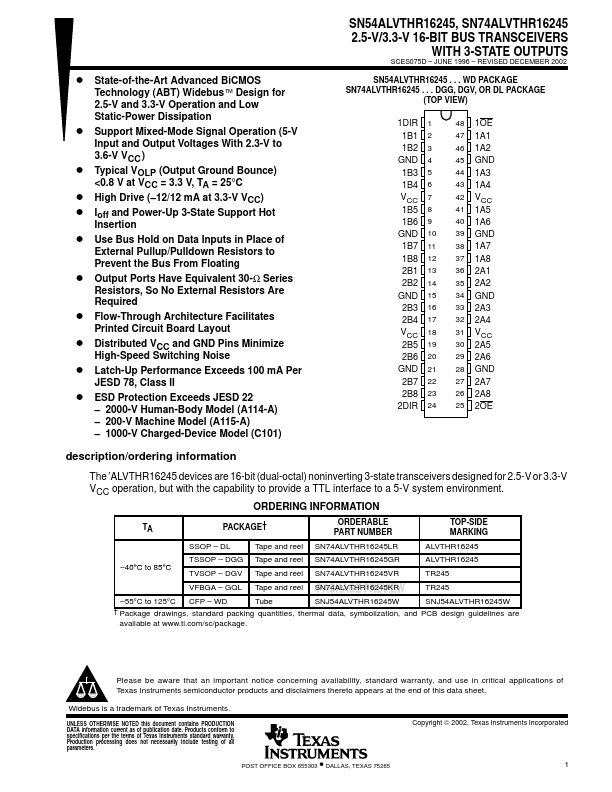

ordering information The ’ALVTHR16245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. ORDERING INFORMATION TA PACKAGE† ORDERABLE PART NUMBER TOP-SIDE MAR.

D State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus  Design for 2.5-V and 3.3-V Operation and Low Static-Power Dissipation D Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V VCC ) D Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C D High Drive ( 12/12 mA at 3.3-V VCC) D Ioff and Power-Up 3-State Support Hot Insertion D Use Bus Hold on Data Inputs in Place of External Pullup/Pulldown Resistors to Prevent the Bus From Float.

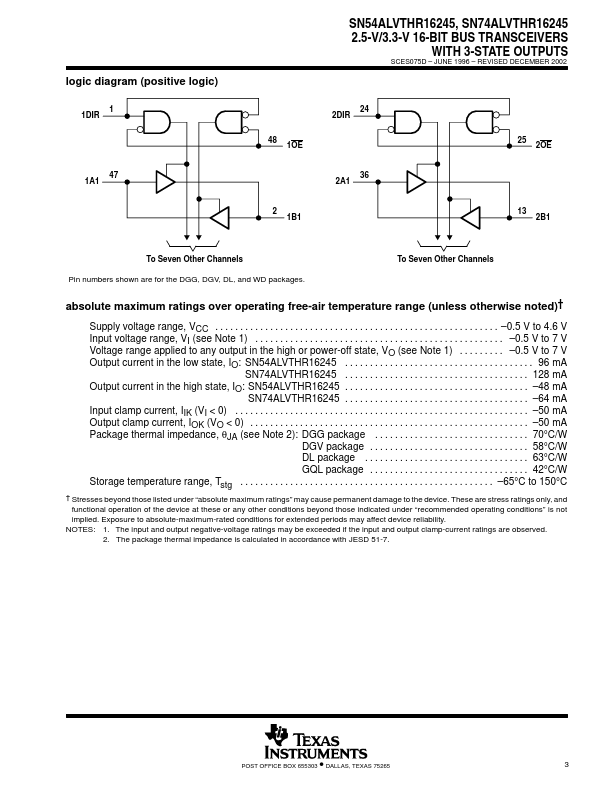

SN54ALVTHR16245 Datasheet (517.46 KB)
