SN54AS74A

Dual Positive-Edge-Triggered D-Type Flip-Flops

SN54AS74A General Description

These devices contain two independent positive-edge-triggered D-type flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup-time requ.

SN54AS74A Datasheet (1.26 MB)

Preview of SN54AS74A PDF

Datasheet Details

Part number:

SN54AS74A

Manufacturer:

Texas Instruments ↗

File Size:

1.26 MB

Description:

Dual positive-edge-triggered d-type flip-flops.

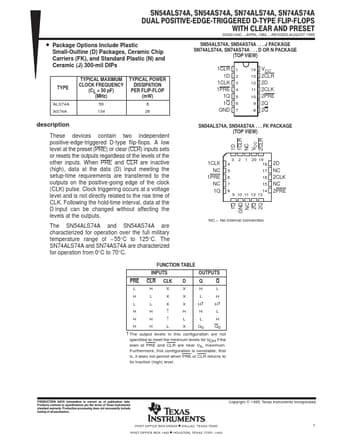

SN54ALS74A, SN54AS74A, SN74ALS74A, SN74AS74A DUAL POSITIVEĆEDGEĆTRIGGERED DĆTYPE FLIPĆFLOPS WITH CLEAR AND PRESET SDAS143C APRIL 1982
