SN54AS805B, SN54ALS805A Datasheet - Texas Instruments

SN54AS805B Hex 2-Input NOR Drivers

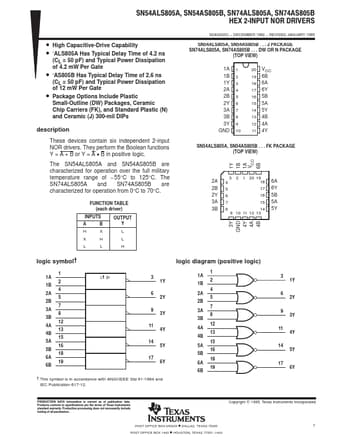

SN54ALS805A, SN54AS805B, SN74ALS805A, SN74AS805B HEX 2ĆINPUT NOR DRIVERS ą SDAS023C DECEMBER 1982 REVISED JANUARY 1995 High Capacitive-Drive Capability ′ALS805A Has Typical Delay Time of 4.2 ns (CL = 50 pF) and Typical Power Dissipation of 4.2 mW Per Gate ′AS805B Has Typical Delay Time of 2.6 ns (CL = 50 pF) and Typical Power Dissipation of 12 mW Per Gate Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carrier.

SN54ALS805A-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN54AS805B, SN54ALS805A. Please refer to the document for exact specifications by model.
