SN54F10

TRIPLE 3-INPUT POSITIVE-NAND GATE

SN54F10 General Description

These devices contain three independent 3-input NAND gates. They perform the Boolean functions Y = A

* B

* C or Y = A + B + C in positive logic. The SN54F10 is characterized for operation over the full military temperature range of

* 55°C to 125°C. The SN74F10 is characterize.

SN54F10 Datasheet (908.38 KB)

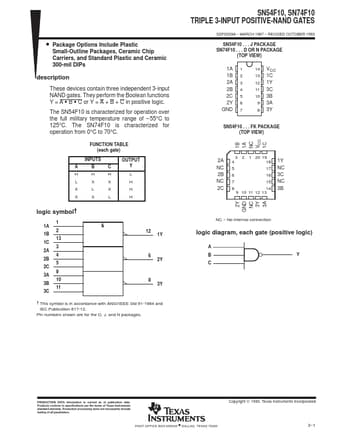

Preview of SN54F10 PDF

Datasheet Details

Part number:

SN54F10

Manufacturer:

Texas Instruments ↗

File Size:

908.38 KB

Description:

Triple 3-input positive-nand gate.
