SN54F240

OCTAL BUFFERS/DRIVERS

SN54F240 General Description

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the ′F241 and ′F244, these devices provide the choice of selected combinations.

SN54F240 Datasheet (1.24 MB)

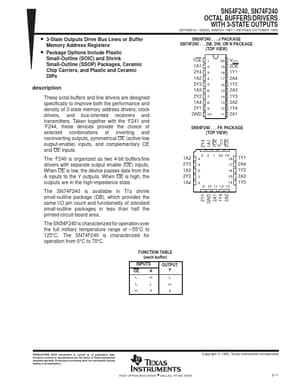

Preview of SN54F240 PDF

Datasheet Details

Part number:

SN54F240

Manufacturer:

Texas Instruments ↗

File Size:

1.24 MB

Description:

Octal buffers/drivers.


* 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

* Package Options Include Plastic Small-Outline (SOIC) and Shrink.
