SN54HC08 Quadruple 2-Input Positive-AND Gates

SN54HC08 Description

SN74HC08, SN54HC08 SCLS081I * DECEMBER 1982 * REVISED SEPTEMBER 2021 SNx4HC08 Quadruple 2-Input AND Gates 1 .
This device contains four independent 2-input AND gates. B in positive logic.

SN54HC08 Features

* Buffered inputs
* Wide operating voltage range: 2 V to 6 V
* Wide operating temperature range:
* 40°C to +85°C
* Supports fanout up to 10 LSTTL loads

SN54HC08 Applications

* Combining power good signals

📥 Download Datasheet

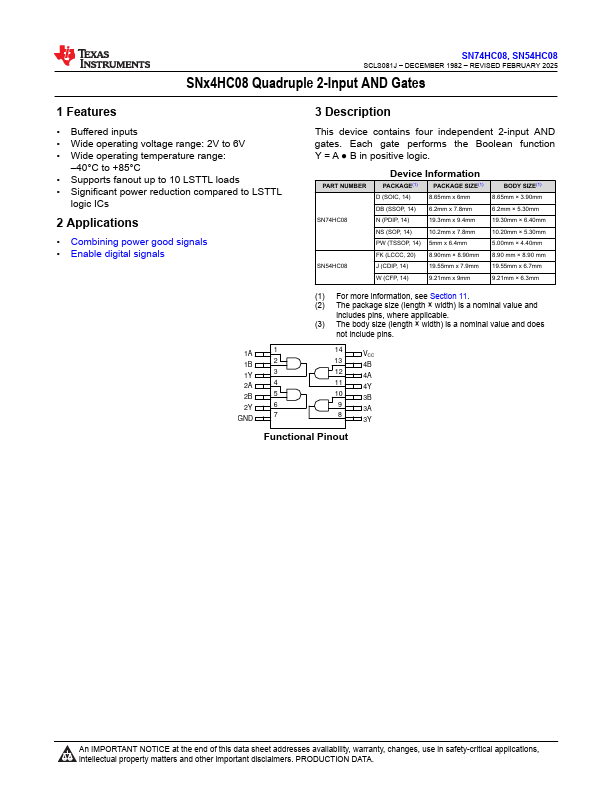

Preview of SN54HC08 PDF

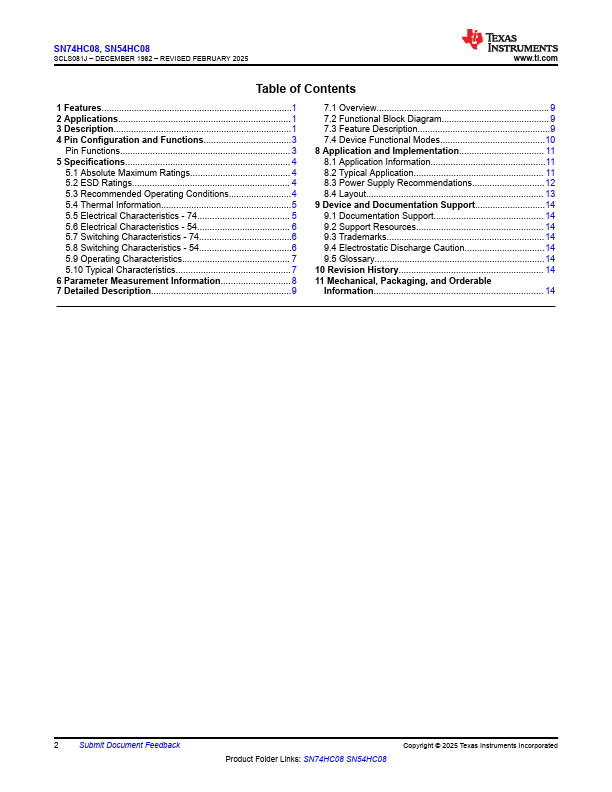

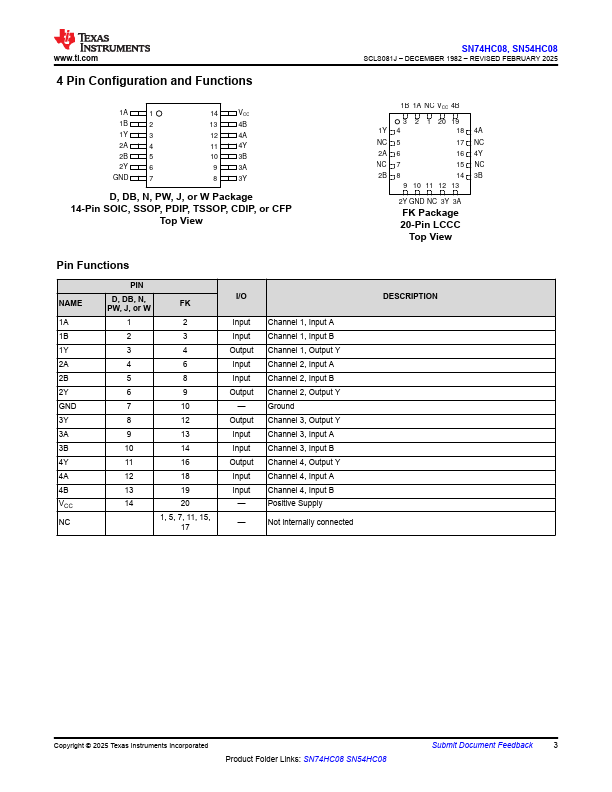

datasheet Preview Page 2 datasheet Preview Page 3
