* Operating Voltage Range of 4.5 V to 5.5 V
* High-Current Outputs Drive up to 15 LSTTL Loads
* Low Power Consumption: 80-µA Maximum ICC
* Typical tpd = 13 ns
* ±6-mA Output Drive at 5 V
* Low Input Current of 1 µA Maximum
* Inputs Are TTL-Volt
SN54HCT244 Datasheet (1.99 MB)
SN54HCT244
1.99 MB
Octal buffers and line driver.
SN54HCT244, SN74HCT244
SCLS175G
* MARCH 2003
* REVISED DECEMBER 2022

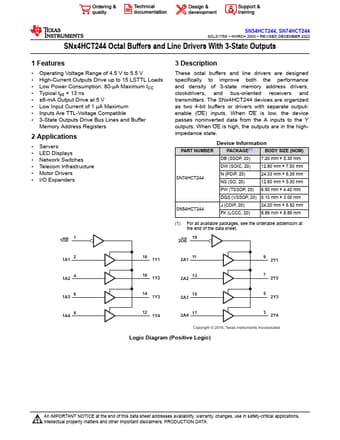

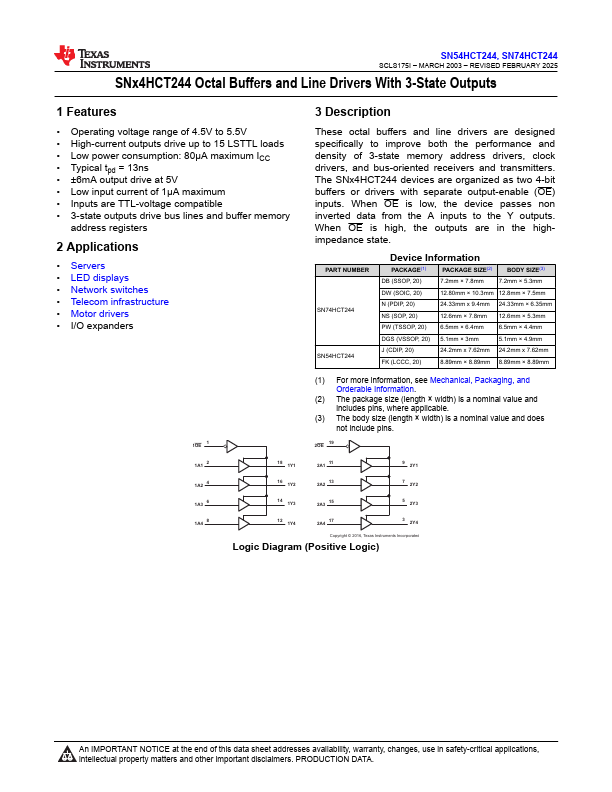

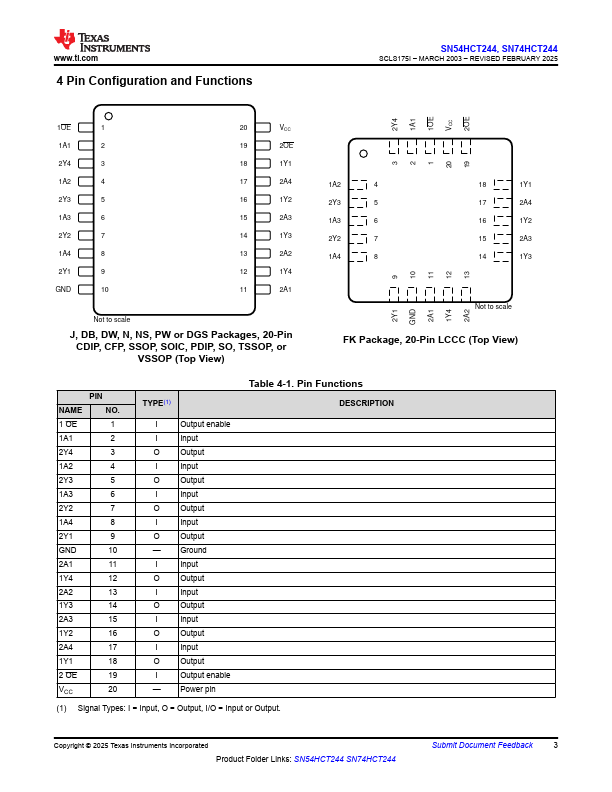

SNx4HCT244 Octal Buffers and Line Drivers With 3-State Outputs
