SN54HCT646 OCTAL BUS TRANSCEIVERS-REGISTERS

SN54HCT646 Description

D Operating Voltage Range of 4.5 V to 5.5 V D Low Power Consumption, 80-µA Max ICC D Typical tpd = 12 ns D ±6-mA Output Drive at 5 V D Low Input Curre.
ordering information NC. No internal connection The ’HCT646 devices consist of bus-transceiver circuits with 3-state outputs, D-type flip-f.

SN54HCT646 Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. UNLESS OTHERWISE NOTED this document contains PRODUCTION DATA information current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warrant

📥 Download Datasheet

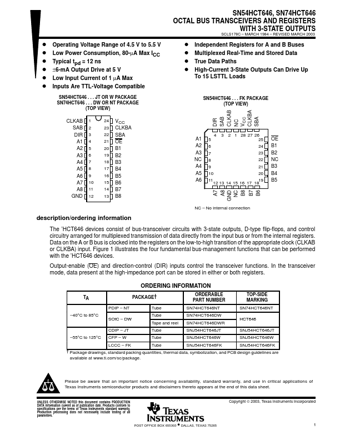

Preview of SN54HCT646 PDF
