SN54LVC74A - Dual Positive-Edge-Triggered D-Type Flip-Flops

Texas Instruments

📥 Download Datasheet

SN54LVC74A Datasheet Preview — Preview of SN54LVC74A PDF

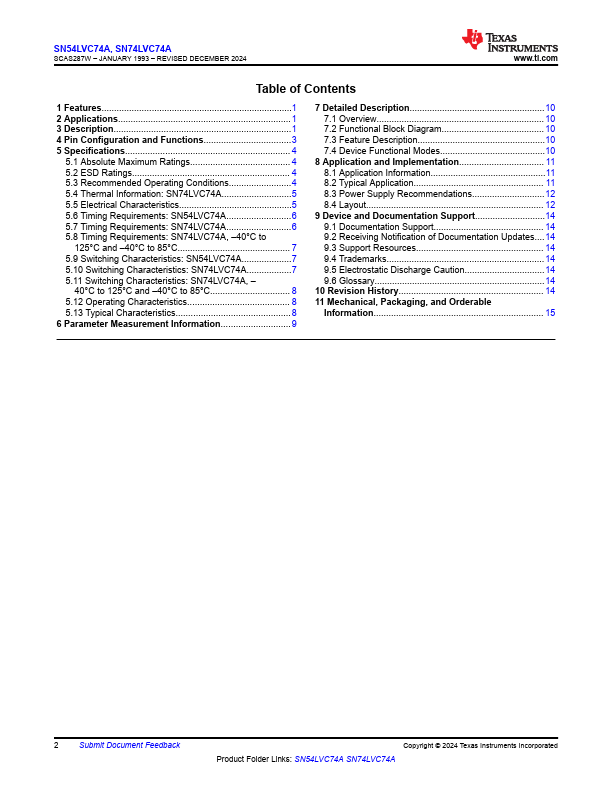

datasheet Preview Page 2

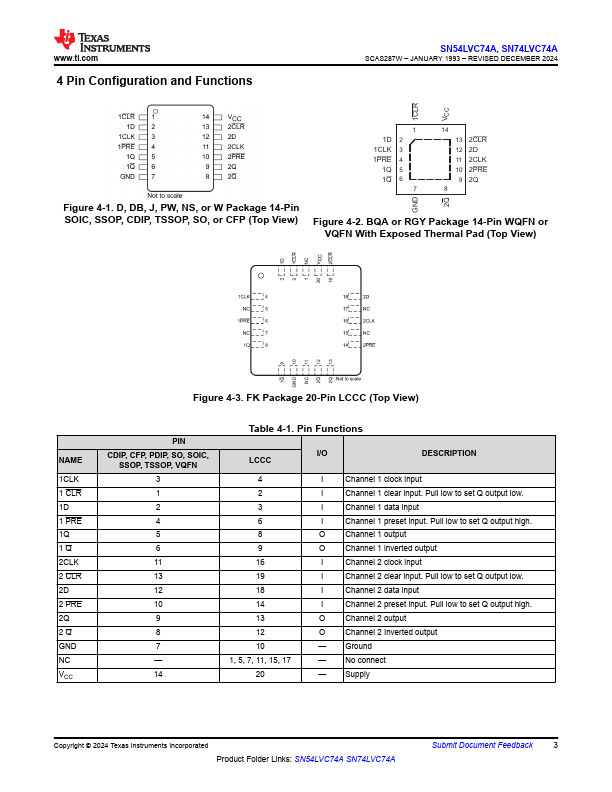

datasheet Preview Page 3

Datasheet Details

Part number	SN54LVC74A
Manufacturer	Texas Instruments
File Size	3.60 MB
Description	Dual Positive-Edge-Triggered D-Type Flip-Flops
Datasheet	SN54LVC74A-etcTI.pdf

SN54LVC74A Product details

Description

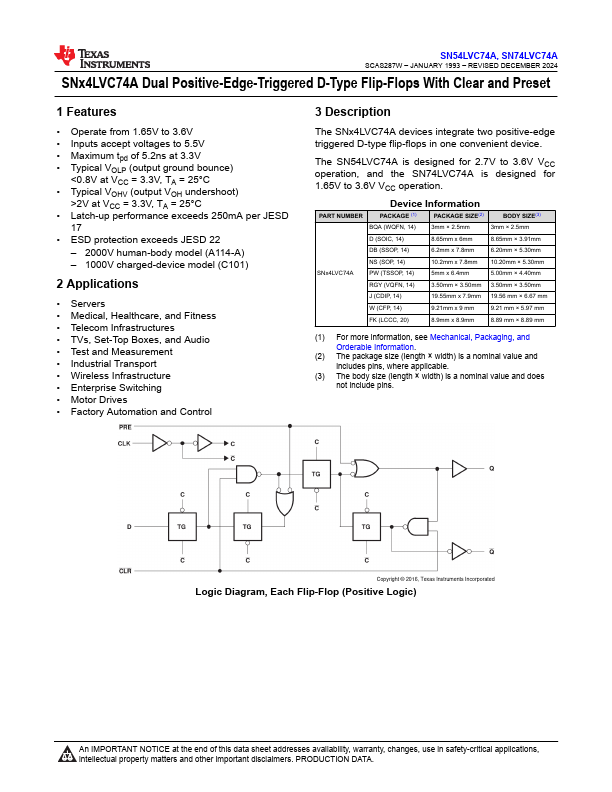

The SNx4LVC74A devices integrate two positive-edge triggered D-type flip-flops in one convenient device.

Features

Operate from 1.65V to 3.6V.
Inputs accept voltages to 5.5V.
Maximum tpd of 5.2ns at 3.3V.
Typical VOLP (output ground bounce) 2V at VCC = 3.3V, TA = 25°C.
Latch-up performance exceeds 250mA per JESD 17.
ESD protection exceeds JESD 22.
2000V human-body model (A114-A).
1000V charged-device model (C101) 2.
