SN54LVTH16652 3.3-V ABT 16-BIT BUS TRANSCEIVERS AND REGISTERS

The ’LVTH16652 devices are 16-bit bus transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. Output-enable (OEAB and OEBA) inputs are p.

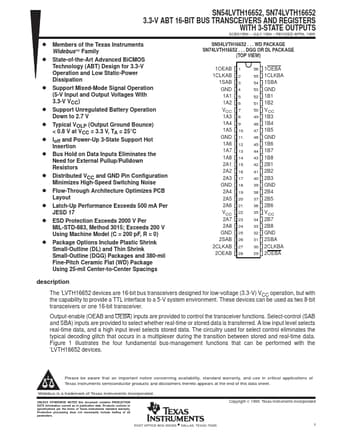

SN54LVTH16652, SN74LVTH16652 3.3-V ABT 16-BIT BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS SCBS150K JULY 1994 REVISED APRIL 1999 D Members of the Texas Instruments Widebus™ Family D State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation D Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC) D Support Unregulated Battery Operation Down to 2.7 V D Typical VOLP (Output Ground Bounce) < 0.
