SN54LVTH273, 3.3-V ABT OCTAL D-TYPE FLIP-FLOPS
ordering information These octal D-type flip-flops are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
The ’LVTH273 devices are positive-edge-triggered flip-flops with a direct-clear input.
Information at t
D Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC ) D Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C D Support Unregulated Battery Operation Down To 2.7 V D Buffered Clock and Direct-Clear Inputs D Individual Data Input to Each Flip-Flop SN54LVTH273 .
.
.
J PACKAGE SN74LVTH273 .
.
.

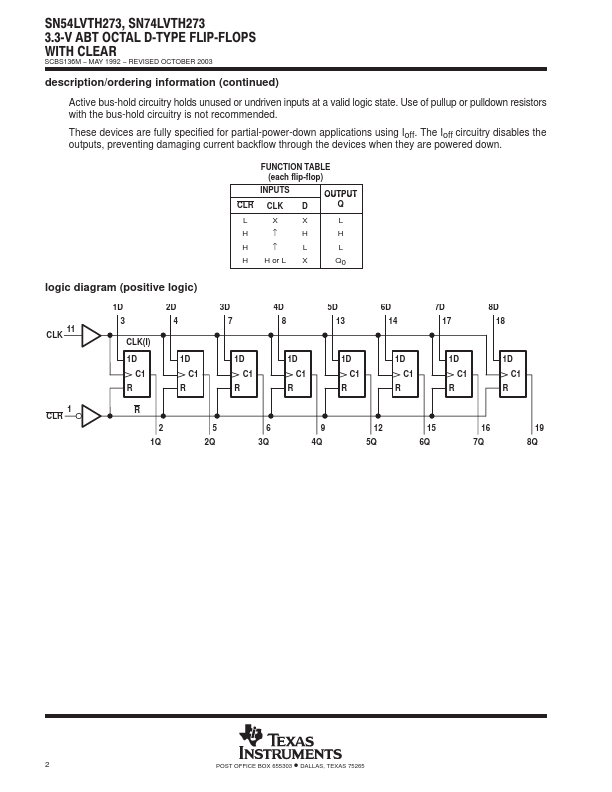

DB, DW, NS, OR PW PACKAGE (TOP VIEW) SN54LVTH273, SN74LVTH273 3.3ĆV ABT OCTAL DĆTYPE FLIPĆFLOPS WITH CLEAR SCBS136M MAY 1992 REVISED OCTOBE
