SN54LVTH574 3.3-V ABT OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS

ordering information These octal flip-flops are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. ORDERING INFORMATION TA PACKAGE† ORDERABLE PART NUMBER TOP-SIDE MARKING QFN * RGY Tape and reel .

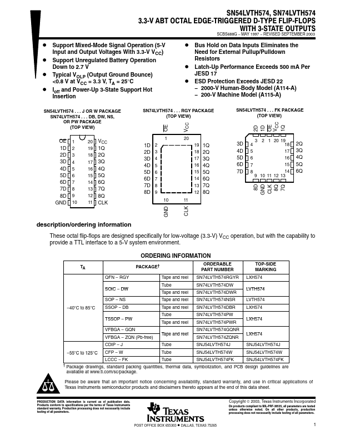

SN54LVTH574, SN74LVTH574 3.3-V ABT OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCBS688G MAY 1997 REVISED SEPTEMBER 2003 D Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC) D Support Unregulated Battery Operation Down to 2.7 V D Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C D Ioff and Power-Up 3-State Support Hot Insertion D Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resisto.
