SN65175 - Quadruple Differential Line Receivers

Texas Instruments

Datasheet Details

Part number	SN65175
Manufacturer	Texas Instruments ↗
File Size	1.33 MB
Description	Quadruple Differential Line Receivers
Datasheet	SN65175-etcTI.pdf

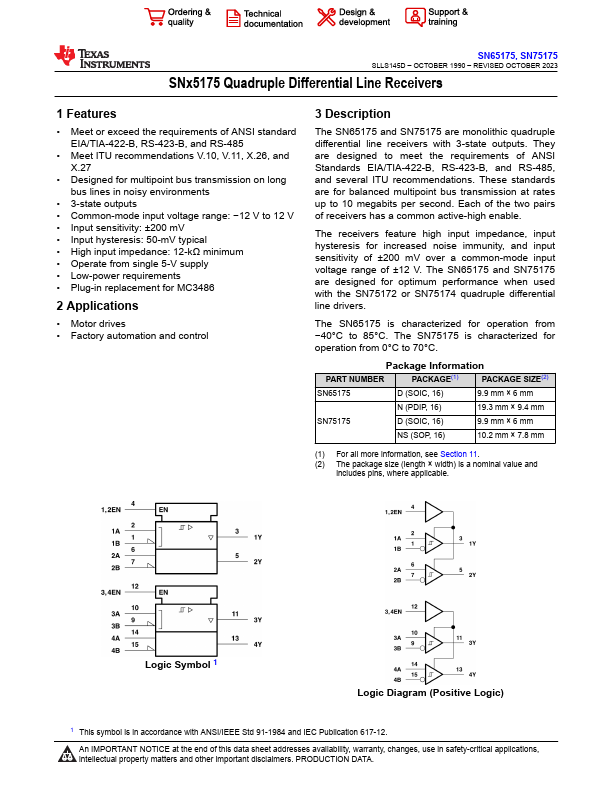

The SN65175 and SN75175 are monolithic quadruple differential line receivers with 3-state outputs.

Meet or exceed the requirements of ANSI standard EIA/TIA-422-B, RS-423-B, and RS-485.
Meet ITU recommendations V.10, V.11, X.26, and X.27.
Designed for multipoint bus transmission on long bus lines in noisy environments.
3-state outputs.
Common-mode input voltage range:.
12 V to 12 V.
Input sensitivity: ±200 mV.
Input hysteresis: 50-mV typical.
High input impedance: 12-kΩ minimum.
Operate from single 5-V su.
