SN65556 - Electroluminescent Column Drivers

This page provides the datasheet information for the SN65556, a member of the SN65555 Electroluminescent Column Drivers family.

Description

The SN65555, SN75555, SN65556, and SN75556 are monolithic BIDFET† integrated circuits designed to drive the column electrodes of an electroluminescent display.

The SN65556 and SN75556 output sequence is reversed from the SN65555 and SN75555 for ease in printed-circuitboard layout.

📥 Download Datasheet

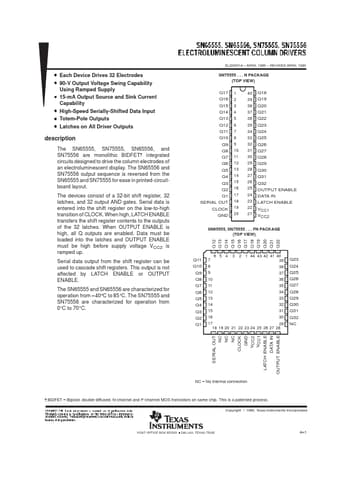

Datasheet preview – SN65556

Datasheet Details

Part number SN65556
Manufacturer Texas Instruments
File Size 203.33 KB
Description Electroluminescent Column Drivers
Datasheet download datasheet SN65556 Datasheet
Additional preview pages of the SN65556 datasheet.

📁 Similar Datasheet

  • SN65004 - One Channel Direct Drive Speech Controller (SONiX Technology Company)
  • SN65007 - One Channel Direct Drive Speech Controller (SONiX Technology Company)
  • SN65010 - One Channel Direct Drive Speech Controller (SONiX Technology Company)
  • SN65012 - One Channel Direct Drive Speech Controller (SONiX Technology Company)
  • SN65016 - One Channel Direct Drive Speech Controller (SONiX Technology Company)
  • SN65020 - One Channel Direct Drive Speech Controller (SONiX Technology Company)
  • SN65031 - Two Channels Direct Drive Speech Controller (SONiX Technology Company)
  • SN65042 - Two Channels Direct Drive Speech Controller (SONiX Technology Company)
  • SN65061 - Two Channels Direct Drive Speech Controller (SONiX Technology Company)
  • SN65176B - Multipoint RS-485/RS-422 Transceivers (UMW)
Other Datasheets by Texas Instruments
  • SN65555 - Electroluminescent Column Drivers
  • SN65512B - Vacuum Fluorescent Display Drivers
  • SN65512C - Vacuum Fluorescent Display Drivers
  • SN65518 - Vacuum Fluorescent Display Drivers
  • SN6501 - Transformer Driver
  • SN6501-Q1 - Transformer Driver
  • SN6505A - Low-Noise 1-A Transformer Drivers
  • SN6505A-Q1 - Low-Noise 1-A Transformer Drivers

Full PDF Text Transcription

Click to expand full text
Each Device Drives 32 Electrodes 90-V Output Voltage Swing Capability Using Ramped Supply 15-mA Output Source and Sink Current Capability High-Speed Serially-Shifted Data Input Totem-Pole Outputs Latches on All Driver Outputs description The SN65555, SN75555, SN65556, and SN75556 are monolithic BIDFET† integrated circuits designed to drive the column electrodes of an electroluminescent display. The SN65556 and SN75556 output sequence is reversed from the SN65555 and SN75555 for ease in printed-circuitboard layout. The devices consist of a 32-bit shift register, 32 latches, and 32 output AND gates. Serial data is entered into the shift register on the low-to-high transition of CLOCK. When high, LATCH ENABLE transfers the shift register contents to the outputs of the 32 latches.
