SN65HVD12, SN65HVD10 3.3-V RS-485 Transceivers

SN65HVD12 Description

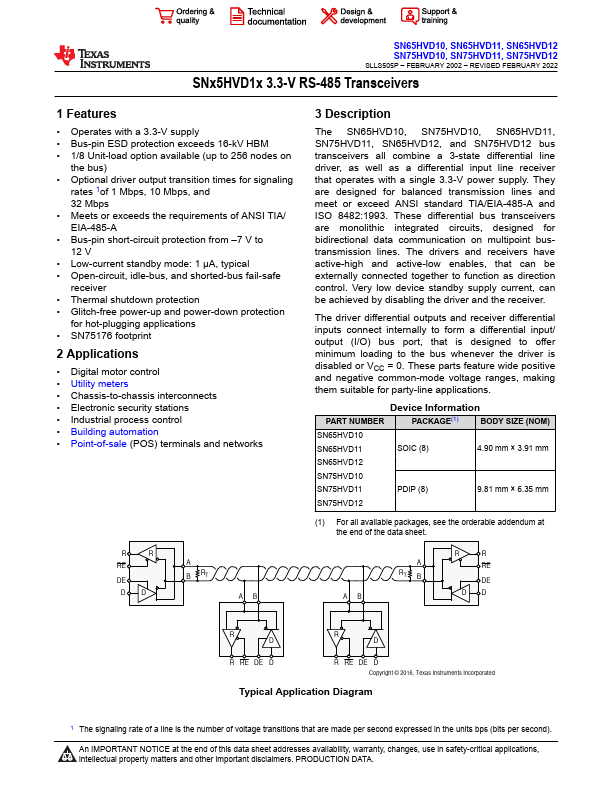

SN65HVD10, SN65HVD11, SN65HVD12 SN75HVD10, SN75HVD11, SN75HVD12 SLLS505P * FEBRUARY 2002 * REVISED FEBRUARY 2022 SNx5HVD1x 3.3-V RS-48.
The SN65HVD10, SN75HVD10, SN65HVD11, SN75HVD11, SN65HVD12, and SN75HVD12 bus transceivers all combine a 3-state differential line driver, as well as.

SN65HVD12 Features

* Operates with a 3.3-V supply
* Bus-pin ESD protection exceeds 16-kV HBM
* 1/8 Unit-load option available (up to 256 nodes on the bus)
* Optional driver output transition times for signaling rates 1of 1 Mbps, 10 Mbps, and 32 Mbps
* Meets or exceeds the requir

SN65HVD12 Applications

* SN75176 footprint 2 Applications
* Digital motor control
* Utility meters
* Chassis-to-chassis interconnects
* Electronic security stations
* Industrial process control
* Building automation
* Point-of-sale (POS) terminals and network

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN65HVD12, SN65HVD10. Please refer to the document for exact specifications by model.

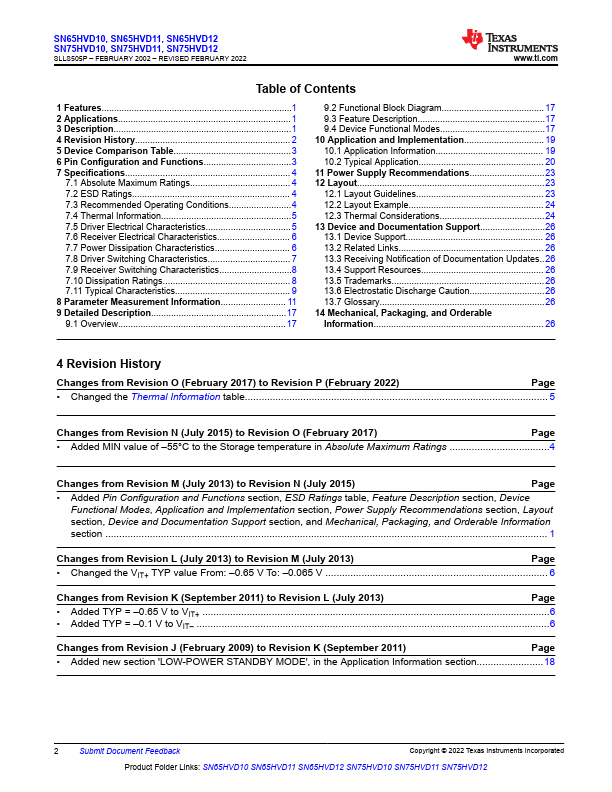

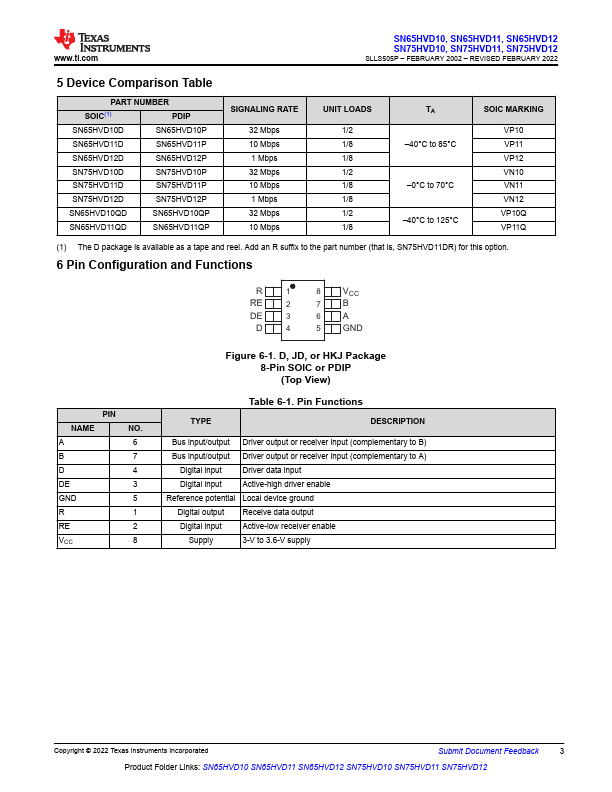

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN65HVD12, SN65HVD10
Manufacturer
Texas Instruments ↗
File Size
1.38 MB
Datasheet
SN65HVD10-etcTI.pdf
Description
3.3-V RS-485 Transceivers
Note
This datasheet PDF includes multiple part numbers: SN65HVD12, SN65HVD10.
Please refer to the document for exact specifications by model.
