SN65LBC031Q, SN65LBC031 Datasheet (Texas Instruments) - HIGH-SPEED CONTROLLER AREA NETWORK TRANSCEIVERS

SN65LBC031Q, SN65LBC031, HIGH-SPEED CONTROLLER AREA NETWORK TRANSCEIVERS

TERMINAL FUNCTIONS TERMINAL DESCRIPTION TX GND VCC RX REF Transmitter input Ground Supply voltage Receiver output Reference output The SN75LBC031 is a CAN transceiver used as an interface between a CAN controller and the physical bus for high speed applications of up to CANL CANH ASC Low sid

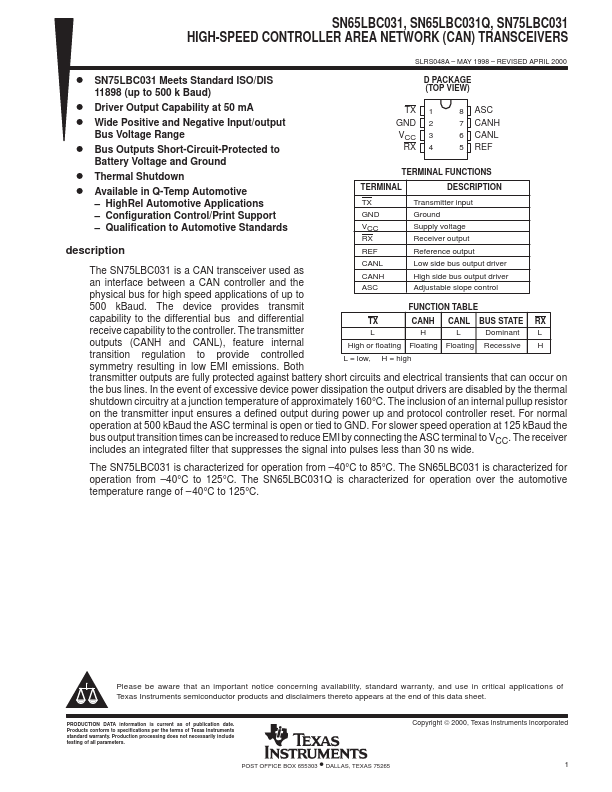

SN65LBC031, SN65LBC031Q, SN75LBC031 HIGH-SPEED CONTROLLER AREA NETWORK (CAN) TRANSCEIVERS SLRS048A MAY 1998 REVISED APRIL 2000 D SN75LBC031 Meets Standard ISO/DIS 11898 (up to 500 k Baud) D Driver Output Capability at 50 mA D Wide Positive and Negative Input/output D PACKAGE (TOP VIEW) TX 1 GND 2 8 ASC 7 CANH Bus Voltage Range D Bus Outputs Short-Circuit-Protected to VCC 3 RX 4 6 CANL 5 REF Battery Voltage and Ground D Thermal Shutdown D Available in Q-Temp Automotiv
