SN65LV1224, SN65LV1023 Datasheet - Texas Instruments

SN65LV1224 10:1 LVDS SERIALIZER/DESERIALIZER

The SN65LV1023 serializer and SN65LV1224 deserializer comprise a 10-bit serdes chipset designed to transmit and receive serial data over LVDS differential backplanes at equivalent parallel word rates from 30 MHz to 66 MHz. Including overhead, this translates into a serial data rate between 360-Mbps .

SN65LV1224 Features

* 300-Mbps to 660-Mbps Serial LVDS Data Payload Bandwidth at 30-MHz to 66-MHz System Clock

* Pin-Compatible Superset of NSM DS92LV1023/DS92LV1224

* Chipset (Serializer/Deserializer) Power Consumption

SN65LV1023-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN65LV1224, SN65LV1023. Please refer to the document for exact specifications by model.

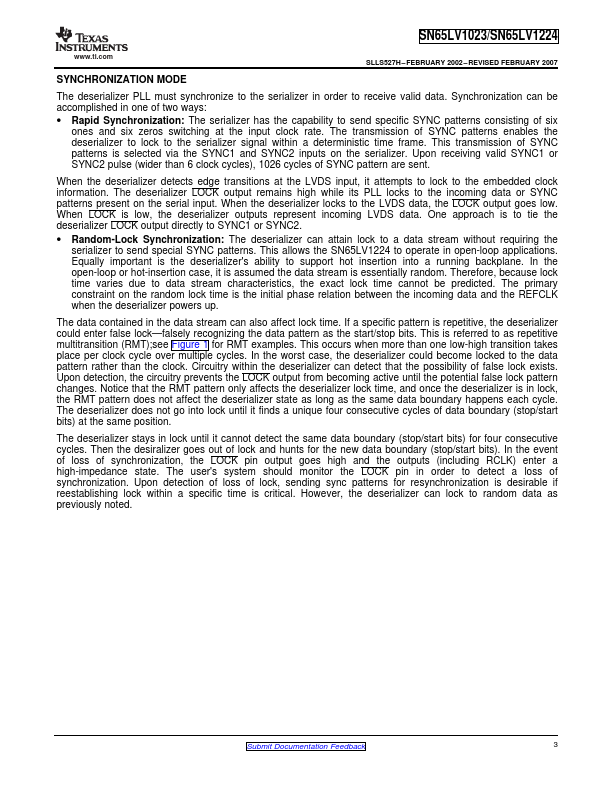

SN65LV1224 Datasheet Preview Page 2 SN65LV1224 Datasheet Preview Page 3

Datasheet Details

Part number:

SN65LV1224, SN65LV1023

Manufacturer:

Texas Instruments ↗

File Size:

199.53 KB

Description:

10:1 lvds serializer/deserializer.

Note:

This datasheet PDF includes multiple part numbers: SN65LV1224, SN65LV1023.
Please refer to the document for exact specifications by model.
