SN65MLVD3, SN65MLVD2 Single M-LVDS Receivers

SN65MLVD3 Description

www.ti.com SINGLE M-LVDS RECEIVERS SN65MLVD2 SN65MLVD3 SLLS767 * NOVEMBER 2006 .
The SN65MLVD2 and SN65MLVD3 are single-channel M-LVDS receivers.

SN65MLVD3 Features

* Low-Voltage Differential 30-Ω to 55-Ω Line Receivers for Signaling Rates(1) up to 250Mbps; Clock Frequencies up to 125MHz
* SN65MLVD2 Type-1 Receiver Incorporates 25 mV of Input Threshold Hysteresis
* SN65MLVD3 Type-2 Receiver Provides 100 mV Offset Threshold to Detect Open

SN65MLVD3 Applications

* Parallel Multipoint Data and Clock Transmission via Backplanes and Cables
* Cellular Base Stations
* Central Office Switches
* Network Switches and Routers PACKAGE AND PIN-OUT SN65MLVD2DRB SN65MLVD3DRB SON-8 VCC 1 8 VCC RE 2 7B R3 6A GND 4 5 GND DESCRIPTIO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN65MLVD3, SN65MLVD2. Please refer to the document for exact specifications by model.

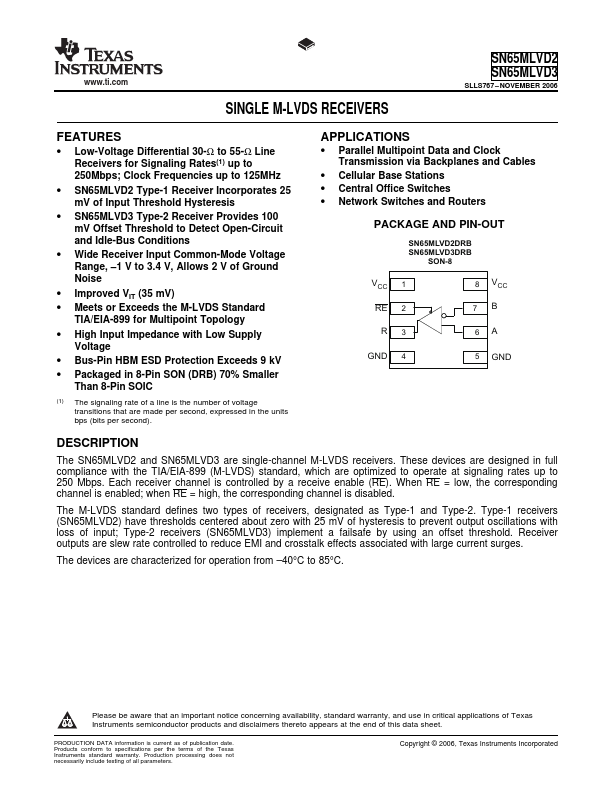

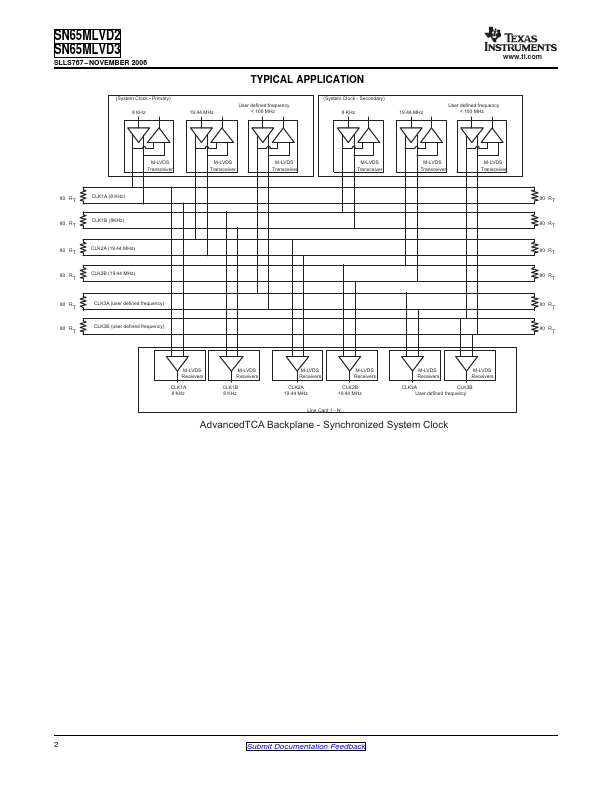

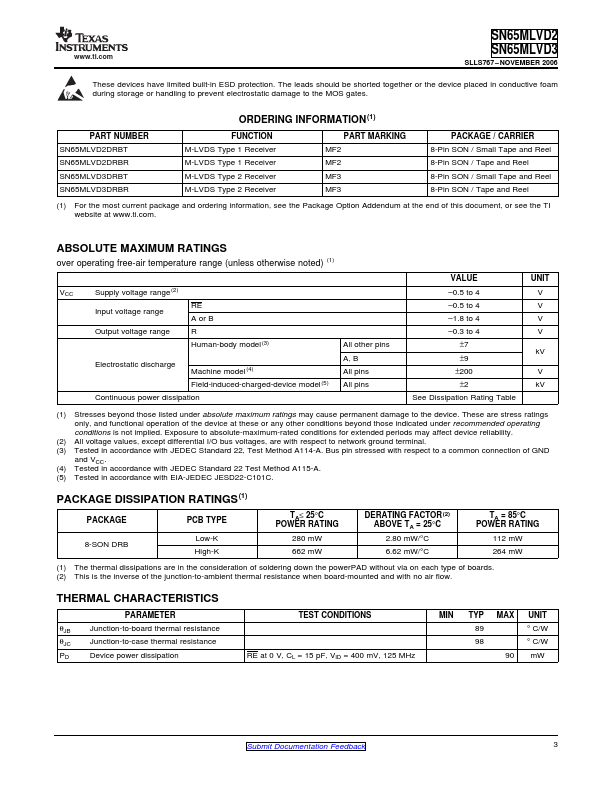

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN65MLVD3, SN65MLVD2
Manufacturer
Texas Instruments ↗
File Size
781.58 KB
Datasheet
SN65MLVD2-etcTI.pdf
Description
Single M-LVDS Receivers
Note
This datasheet PDF includes multiple part numbers: SN65MLVD3, SN65MLVD2.
Please refer to the document for exact specifications by model.
