SN74221

DUAL MONOSTABLE MULTIVIBRATORS

SN74221 Features

* a negative-transitiontriggered input and a positive-transition-triggered input, either of which can be used as an inhibit input. SN54221, SN54LS221, SN74221, SN74LS221 DUAL MONOSTABLE MULTIVIBRATORS WITH SCHMITTĆTRIGGER INPUTS SDLS213B

* DECEMBER 1983

* REVISED NOVEMBER 2004 SN54221

SN74221 Datasheet (1.12 MB)

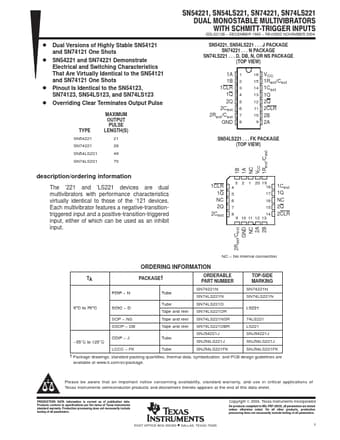

Preview of SN74221 PDF

Datasheet Details

Part number:

SN74221

Manufacturer:

Texas Instruments ↗

File Size:

1.12 MB

Description:

Dual monostable multivibrators.
D Dual Versions of Highly Stable SN54121 and SN74121 One Shots D SN54221 and SN74221 Demonstrate Electrical and Switching Characteristics That Are Vir.
