SN74ABT162244 Datasheet - Texas Instruments

SN74ABT162244 - 16-BIT BUFFERS/DRIVERS

ordering information The ’ABT162244 devices are 16-bit buffers and line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

These devices can be used as four 4-bit buffers, two 8-bit

SN54ABT162244, SN74ABT162244 16ĆBIT BUFFERS/DRIVERS WITH 3ĆSTATE OUTPUTS SCBS238E JUNE 1992 REVISED JUNE 2004 D Members of the Texas Instruments Widebus E Family D Output Ports Have Equivalent 25-Ω Series Resistors, So No External Resistors Are Required D Typical VOLP (Output Ground Bounce) <1 V at VCC = 5 V, TA = 25°C D High-Impedance State During Power Up and Power Down D Ioff and Power-Up 3-State Support Hot Insertion D Distributed VCC and GND Pins Minimize High-Speed Swi

SN74ABT162244-etcTI.pdf

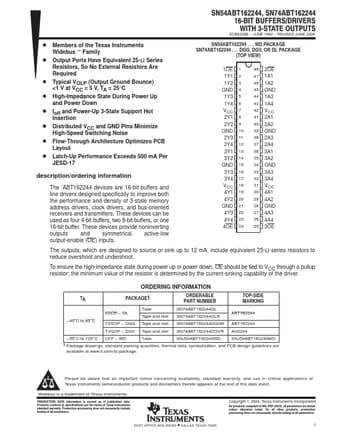

Preview of SN74ABT162244 PDF
