SN74ALS04B

Hex Inverters

SN74ALS04B General Description

These devices contain six independent hex inverters. They perform the Boolean function Y = A. The SN54ALS04B and SN54AS04 are characterized for operation over the full military temperature range of

* 55°C to 125°C. The SN74ALS04B and SN74AS04 are characterized for operation from 0°C to 70°C..

SN74ALS04B Datasheet (1.16 MB)

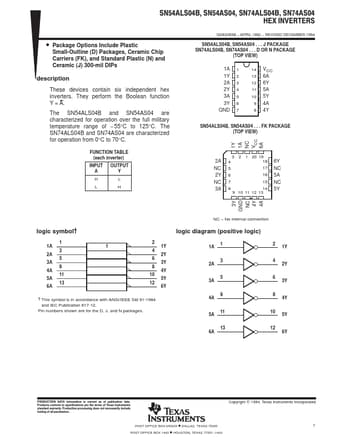

Preview of SN74ALS04B PDF

Datasheet Details

Part number:

SN74ALS04B

Manufacturer:

Texas Instruments ↗

File Size:

1.16 MB

Description:

Hex inverters.
SN54ALS04B, SN54AS04, SN74ALS04B, SN74AS04 HEX INVERTERS

* Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers .
