SN74ALS688

8-BIT IDENTITY COMPARATORS

SN74ALS688 General Description

These identity comparators perform comparisons on two 8-bit binary or BCD words and provide P = Q outputs. These devices have totem-pole outputs. The SN54ALS688 is characterized for operation over the full military temperature range of * 55°C to 125°C. The SN74ALS688 is characterized for ope.

SN74ALS688 Datasheet (1.25 MB)

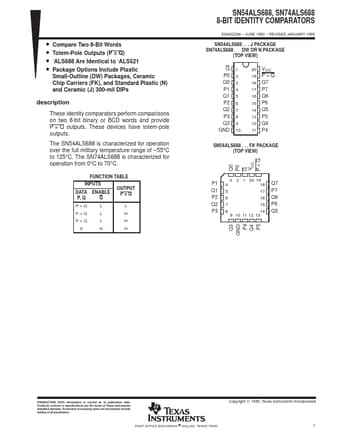

Preview of SN74ALS688 PDF

Datasheet Details

Part number:

SN74ALS688

Manufacturer:

Texas Instruments ↗

File Size:

1.25 MB

Description:

8-bit identity comparators.
Compare Two 8-Bit Words Totem-Pole Outputs (P = Q) ′ALS688 Are Identical to ′ALS521 Package Options Include Pl.
