SN74ALS810

Quadruple 2-Input Exclusive-NOR Gates

SN74ALS810 General Description

These devices contain four independent Exclusive-NOR gates. They perform the Boolean functions Y = A + B = (A + B) *(A + B) in positive logic. A common application is a true/complement element. If one of the inputs is high, the other input will be reproduced in true form at the output. If one.

SN74ALS810 Datasheet (75.25 KB)

Rating: 1 ★ (1 votes)
Preview of SN74ALS810 PDF

Datasheet Details

Part number:

SN74ALS810

Manufacturer:

Texas Instruments ↗

File Size:

75.25 KB

Description:

Quadruple 2-input exclusive-nor gates.

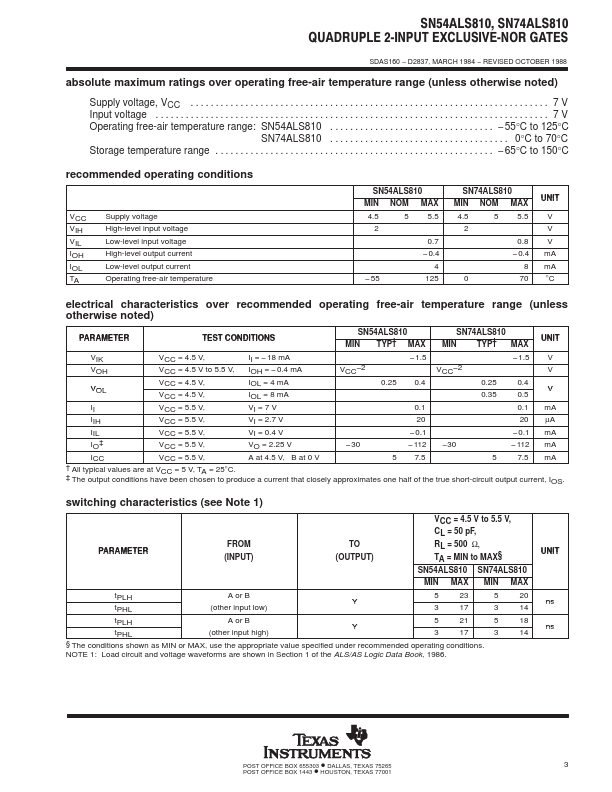

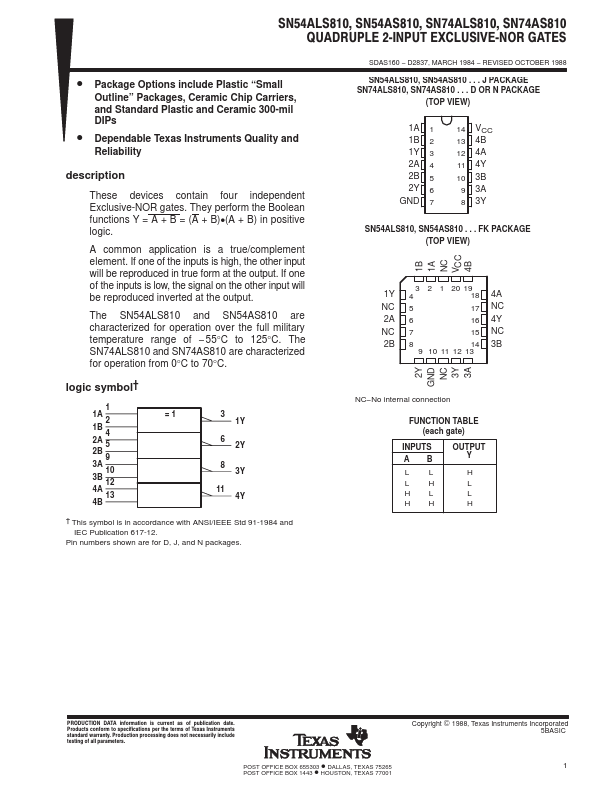

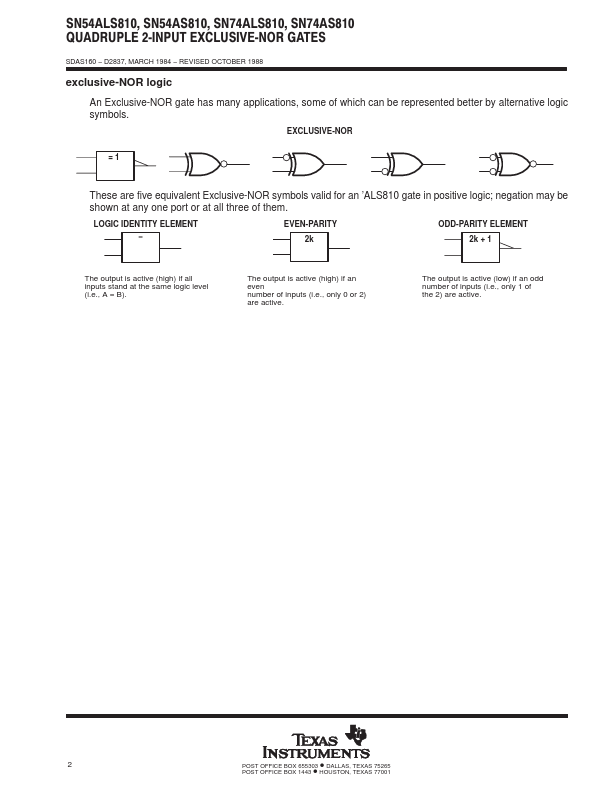

ą SN54ALS810, SN54AS810, SN74ALS810, SN74AS810 QUADRUPLE 2ĆINPUT EXCLUSIVEĆNOR GATES ą SDAS160 D2837, MARCH 1984 REVISED OCTOB.
