SN74ALVC16834 - 18-BIT UNIVERSAL BUS DRIVER

Texas Instruments

📥 Download Datasheet

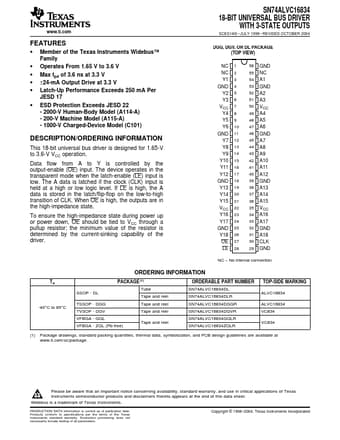

SN74ALVC16834 Datasheet Preview — Preview of SN74ALVC16834 PDF

Datasheet Details

Part number	SN74ALVC16834
Manufacturer	Texas Instruments
File Size	726.28 KB
Description	18-BIT UNIVERSAL BUS DRIVER
Datasheet	SN74ALVC16834-etcTI.pdf

SN74ALVC16834 Product details

Description

ORDERING INFORMATION This 18-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.Data flow from A to Y is controlled by the output-enable (OE) input.The device operates in the transparent mode when the latch-enable (LE) input is low.The A data is latched if the clock (CLK) input is held at a high or low logic level.If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK.When OE is high, the outputs are in the high-impedance state.T

Features

Member of the Texas Instruments Widebus™ Family.
Operates From 1.65 V to 3.6 V.
Max tpd of 3.6 ns at 3.3 V.
±24-mA Output Drive at 3.3 V.
Latch-Up Performance Exceeds 250 mA Per JESD 17.
ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 200-V Machine Model (A115-A) - 1000-V Charged-Device Model (C101).
