SN74AS623

OCTAL BUS TRANSCEIVERS

SN74AS623 General Description

SDAS226A * DECEMBER 1982 * REVISED JANUARY 1995 DW OR N PACKAGE (TOP VIEW) OEAB 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 A8 9 GND 10 20 VCC 19 OEBA 18 B1 17 B2 16 B3 15 B4 14 B5 13 B6 12 B7 11 B8 These octal bus transceivers are designed for asynchronous two-way communication between.

SN74AS623 Datasheet (765.60 KB)

Preview of SN74AS623 PDF

Datasheet Details

Part number:

SN74AS623

Manufacturer:

Texas Instruments ↗

File Size:

765.60 KB

Description:

Octal bus transceivers.
SN74ALS620A, SN74ALS621A, SN74ALS623A, SN74AS623 OCTAL BUS TRANSCEIVERS Local Bus-Latch Capability Choice of True or Inverting Lo.

📁 Related Datasheet

SN74AS638A OCTAL BUS TRANSCEIVERS (Texas Instruments)

SN74AS639 OCTAL BUS TRANSCEIVERS (Texas Instruments)

SN74AS640 OCTAL BUS TRANSCEIVERS (Texas Instruments)

SN74AS641 OCTAL BUS TRANSCEIVERS (Texas Instruments)

SN74AS645 Octal Bus Transceivers (Texas Instruments)

SN74AS646 OCTAL BUS TRANSCEIVERS AND REGISTERS (Texas Instruments)

SN74AS648 OCTAL BUS TRANSCEIVERS AND REGISTERS (Texas Instruments)

SN74AS651 OCTAL BUS TRANSCEIVERS AND REGISTERS (Texas Instruments)

SN74AS652 OCTAL BUS TRANSCEIVERS AND REGISTERS (Texas Instruments)

SN74AS00 Quadruple 2-Input Positive-NAND Gates (Texas Instruments)

TAGS

SN74AS623 OCTAL BUS TRANSCEIVERS Texas Instruments

Image Gallery

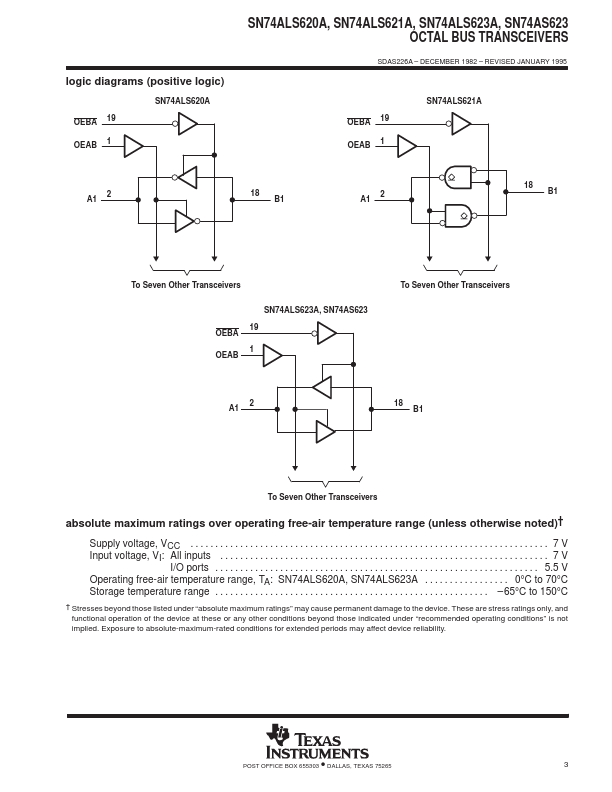

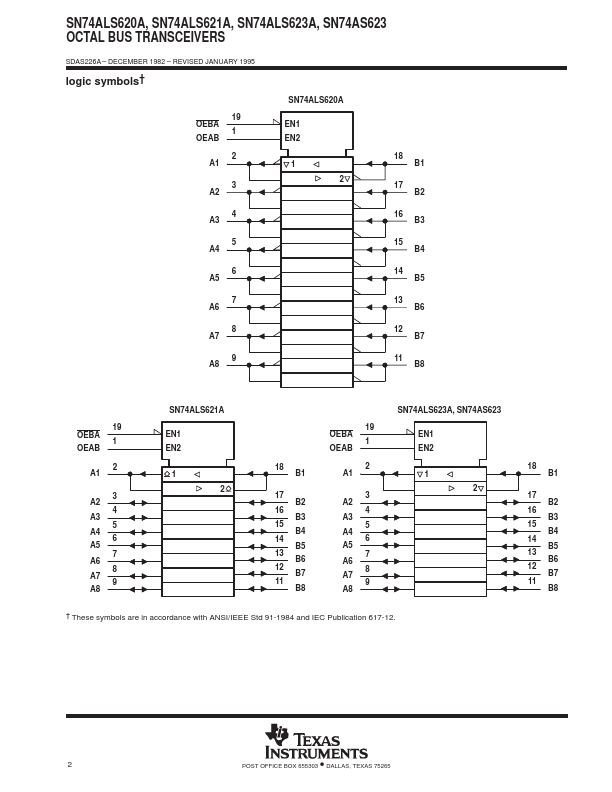

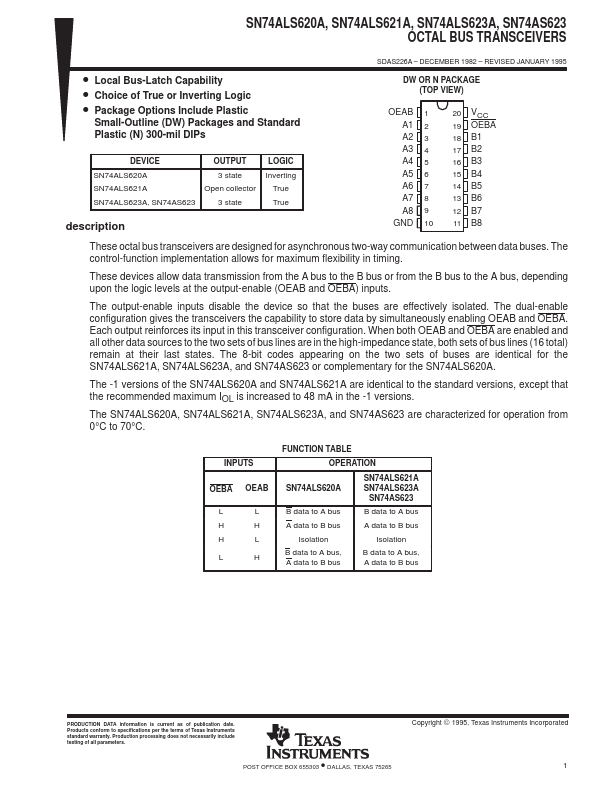

SN74AS623 Datasheet Preview Page 2 SN74AS623 Datasheet Preview Page 3
