SN74HC161 Datasheet - Texas Instruments

SN74HC161 4-BIT SYNCHRONOUS BINARY COUNTERS

D Wide Operating Voltage Range of 2 V to 6 V D Outputs Can Drive Up To 10 LSTTL Loads D Low Power Consumption, 80-µA Max ICC D Typical tpd = 14 ns D ±4-mA Output Drive at 5 V SN54HC161 . . . J OR W PACKAGE SN74HC161 . . . D, N, NS, OR PW PACKAGE (TOP VIEW) CLR 1 CLK 2 A3 B4 C5 D6 ENP 7 GND 8 16 VCC 15 RCO 14 QA 13 QB 12 QC 11 QD 10 ENT 9 LOAD SN54HC161, SN74HC161 4ĆBIT SYNCHRONOUS BINARY COUNTERS SCLS297D JANUARY 1996 REVISED SEPTEMBER 2003 D Low Input Current of 1 µA Max .

SN74HC161-etcTI.pdf

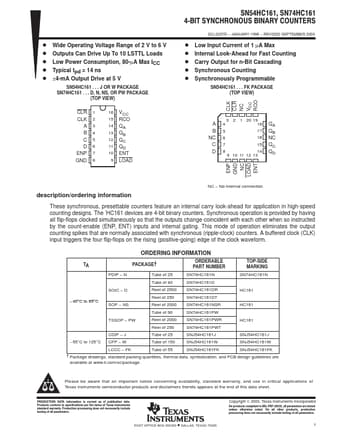

Preview of SN74HC161 PDF
SN74HC161 Datasheet Preview Page 2 SN74HC161 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74HC161

Manufacturer:

Texas Instruments ↗

File Size:

1.44 MB

Description:

4-bit synchronous binary counters.
