SN74LS06D

Hex Inverter Buffers/Drivers

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Texas Instruments SN74LS06D IC INVERTER 6CH 1-INP 14SOIC DigiKey 1009 5000 units
$0.53

SN74LS06D Datasheet (1.25 MB)

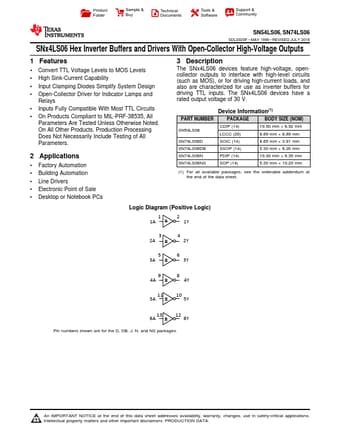

Preview of SN74LS06D PDF Datasheet

Datasheet Details

Part number:

SN74LS06D

Manufacturer:

Texas Instruments ↗

File Size:

1.25 MB

Description:

Hex inverter buffers/drivers

SN74LS06D Features

* 1 Convert TTL Voltage Levels to MOS Levels

* High Sink-Current Capability

* Input Clamping Diodes Simplify System Design

* Open-Collector Driver for Indicator Lamps and Relays

* Inputs Fully Compatible With Most TTL Circuits

* On Products Compliant to

SN74LS06D General Description

The SNx4LS06 devices feature high-voltage, opencollector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also are characterized for use as inverter buffers for driving TTL inputs. The SNx4LS06 devices have a rated output voltage of 30 V. Device In.
