TAS2110, 6.1-W Digital Input Audio Class-D Amplifier

Product Folder Order Now Technical Documents Tools & Software Support & Community TAS2110 SLASET8 * DECEMBER 2019 TAS2110 6.1-W Digital I.
The TAS2110 is a digital input Class-D audio amplifier with an algorithmically controlled, 11V Class-H boost in a QFN package.

TAS2110-etcTI.pdf

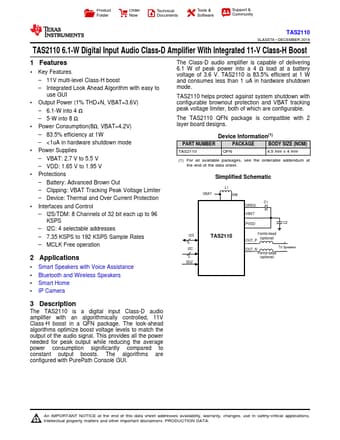

TAS2110 Datasheet Preview — Preview of TAS2110 PDF

Datasheet Details

Part number:

TAS2110

Manufacturer:

Texas Instruments ↗

File Size:

1.28 MB

Description:

6.1-W Digital Input Audio Class-D Amplifier

Features

* 1 Key Features
* 11V multi-level Class-H boost
* Integrated Look Ahead Algorithm with easy to use GUI
* Output Power (1% THD+N, VBAT=3.6V)
* 6.1-W into 4 Ω
* 5-W into 8 Ω
* Power Consumption(8Ω, VBAT=4.2V)
* 83.5% efficiency at 1W

Applications

* Smart Speakers with Voice Assistance
* Bluetooth and Wireless Speakers
* Smart Home
* IP Camera The Class-D audio amplifier is capable of delivering 6.1 W of peak power into a 4 Ω load at a battery voltage of 3.6 V. TAS2110 is 83.5% efficient at 1 W and consumes le
