TAS5754M, Closed-Loop Class-D Amplifier

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TAS5754M SLAS987 * JUNE 2014 Digital Input, Closed-L.
The TAS5754M device is a high-performance, stereo closed-loop amplifier with integrated audio processor with PurePath™ HybridFlow architecture.

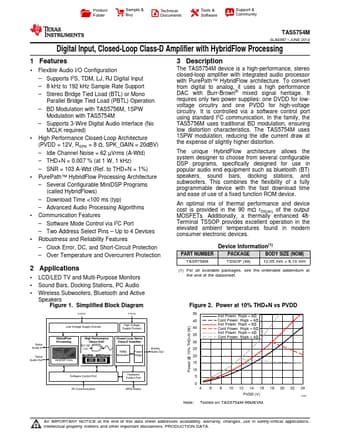

datasheet Preview Page 1 from Datasheet4u.com

TAS5754M-etcTI.pdf

TAS5754M Datasheet Preview — Preview of TAS5754M PDF

Datasheet Details

Part number:

TAS5754M

Manufacturer:

Texas Instruments ↗

File Size:

3.68 MB

Description:

Closed-Loop Class-D Amplifier

Features

* 1 Flexible Audio I/O Configuration
* Supports I2S, TDM, LJ, RJ Digital Input
* 8 kHz to 192 kHz Sample Rate Support
* Stereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation
* BD Modulation with TAS5756M, 1SPW Modulation with TAS5754M

Applications

* LCD/LED TV and Multi-Purpose Monitors
* Sound Bars, Docking Stations, PC Audio
* Wireless Subwoofers, Bluetooth and Active Speakers Figure 1. Simplified Block Diagram DVDD PVDD Serial Audio In Serial Audio Out Low-Voltage Supply Domain High Voltage Supply Domain Hybr
