TCA8418 - I2C Controlled Keypad Scanner

General Description

The TCA8418 is a keypad scan device with integrated ESD protection.

It can operate from 1.65 V to 3.6 V and has 18 general purpose inputs/outputs (GPIO) that can be used to support up to 80 keys via the I2C interface.

Key Features

  • 1 Operating Power-Supply Voltage Range of 1.65-V to 3.6-V.
  • Supports 80 Buttons With Use of 18 GPIOs.
  • Supports QWERTY Keypad Operation Plus GPIO Expansion.
  • Low Standby (Idle) Current Consumption: 3 μA.
  • Supports 1-MHz Fast Mode Plus I2C Bus.
  • 10 Byte FIFO to Store 10 Key Presses and Releases.
  • Open-Drain Active-Low Interrupt Output.
  • Integrated Debounce Time of 50 μs.
  • Schmitt-Trigger Action Allows Slow Input Transition a.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TCA830 MONOLITHIC INTEGRATED CIRCUIT Vishay Telefunken
TCA830A MONOLITHIC INTEGRATED CIRCUIT Vishay Telefunken
TCA871 Transistor Array Siemens
TCA0372 Dual Power Operational Amplifier Motorola
TCA0372 Dual Power Operational Amplifier ON Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
TCA8418E I2C Controlled Keypad Scanner
TCA8424 Low-Voltage 8x16 Keyboard Scanner
TCA1116 LOW VOLTAGE 16-BIT I2C I/O EXPANDER
TCA39416 Ultra-Low-Voltage I3C Translator
TCA4311 Hot Swappable 2-Wire Bus Buffers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

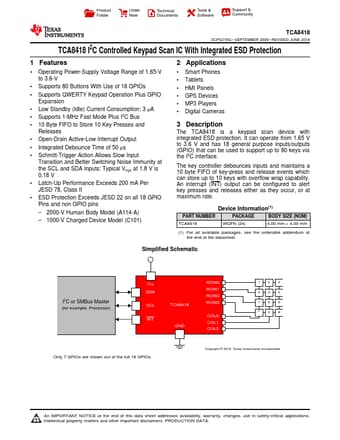

Product Folder Order Now Technical Documents Tools & Software Support & Community TCA8418 SCPS215G – SEPTEMBER 2009 – REVISED JUNE 2018 TCA8418 I2C Controlled Keypad Scan IC With Integrated ESD Protection 1 Features •1 Operating Power-Supply Voltage Range of 1.65-V to 3.6-V • Supports 80 Buttons With Use of 18 GPIOs • Supports QWERTY Keypad Operation Plus GPIO Expansion • Low Standby (Idle) Current Consumption: 3 μA • Supports 1-MHz Fast Mode Plus I2C Bus • 10 Byte FIFO to Store 10 Key Presses and Releases • Open-Drain Active-Low Interrupt Output • Integrated Debounce Time of 50 μs • Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the SCL and SDA Inputs: Typical Vhys at 1.8 V is 0.
