TCA9406

2-Bit Bidirectional 1-MHz I2C Bus and SMBus Voltage-Level Translator

TCA9406 Features

* 1 2-Bit Bidirectional Translator for SDA and SCL Lines in I2C Applications

* Provides Bidirectional Voltage Translation With No Direction Pin

* High-Impedance Output SCL_A, SDA_A, SCL_B, SDA_B Pins When OE = Low or VCC = 0 V

* Internal 10-kΩ Pullup Resistor on All SD

TCA9406 General Description

The TCA9406 is a 2-bit bidirectional I2C and SMBus voltage-level translator with an output enable (OE) input. It is operational from 1.65 V to 3.6 V on the Aside, referenced toVCCA, and from 2.3 V to 5.5 V on the B-side, referenced to VCCB. This allows the device to interface between lower and highe.

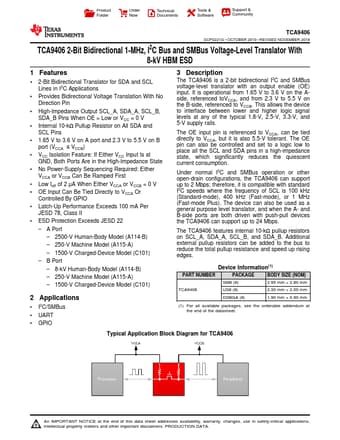

TCA9406 Datasheet (1.12 MB)

Preview of TCA9406 PDF

Datasheet Details

Part number:

TCA9406

Manufacturer:

Texas Instruments ↗

File Size:

1.12 MB

Description:

2-bit bidirectional 1-mhz i2c bus and smbus voltage-level translator.
Product Folder Order Now Technical Documents Tools & Software Support & Community TCA9406 SCPS221G

* OCTOBER 2010

* REVISED NOVEM.
