TCA9416 - Ultra-Low-Voltage I2C Translator

Datasheet Summary

Description

The TCA9416 is a 2-bit bidirectional I2C and SMBus voltage-level translator with an output enable (OE) input and rising and falling edge accelerators.

It is operational from 1.08 V to 3.6 V on both the Aside and B-side.

Features

2-bit bidirectional translator for SDA and SCL lines in I2C.

Texas Instruments

📥 Download Datasheet

Datasheet Details

Part number	TCA9416
Manufacturer	Texas Instruments
File Size	1.24 MB
Description	Ultra-Low-Voltage I2C Translator
Datasheet	TCA9416 Datasheet
Additional preview pages of the TCA9416 datasheet.

📁 Similar Datasheet

TCA940 - AF Amplifier (Thomson Components)
TCA940E - AF Amplifier (Thomson Components)
TCA940N - lOW AUDIO POWER AMPLIFIER (SGS)
TCA900 - MOTOR SPEED REGULATORS (SGS)
TCA910 - MOTOR SPEED REGULATORS (SGS-Ates)
TCA955 - SPEED CONTROLLER (Siemens Semiconductor)
TCA965 - Window Discriminator (Siemens Semiconductor)
TCA965 - Window Discriminator (Infineon Technologies)
TCA965 - Fensterdiskriminator-IS (ETC)
TCA965A - Window Discriminator (Infineon Technologies)

Other Datasheets by Texas Instruments

TCA9406 - 2-Bit Bidirectional 1-MHz I2C Bus and SMBus Voltage-Level Translator
TCA9509 - Level-Translating I2C and SMBUS Bus Repeater
TCA9511A - Hot Swappable I2C Bus and SMBus Buffer
TCA9517 - Level-Shifting I2C Bus Repeater
TCA9517A - Level-Shifting I2C Bus Repeater
TCA9534 - Low Voltage 8-Bit I2C and SMBUS Low-Power I/O Expander
TCA9534A - Low Voltage 8-Bit I2C and SMBUS Low-Power I/O Expander
TCA9535 - Low Voltage 16-Bit I2C and SMBUS Low-Power I/O Expander

Full PDF Text Transcription

Click to expand full text

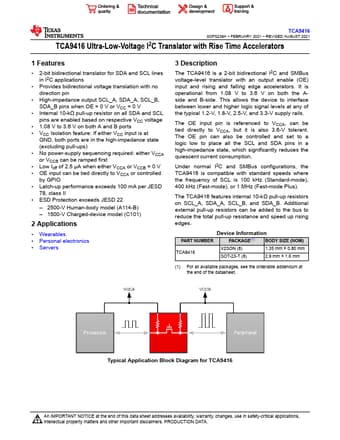

TCA9416 SCPS238A – FEBRUARY 2021 – REVISED AUGUST 2021 TCA9416 Ultra-Low-Voltage I2C Translator with Rise Time Accelerators 1 Features • 2-bit bidirectional translator for SDA and SCL lines in I2C applications • Provides bidirectional voltage translation with no direction pin • High-impedance output SCL_A, SDA_A, SCL_B, SDA_B pins when OE = 0 V or VCC = 0 V • Internal 10-kΩ pull-up resistor on all SDA and SCL pins are enabled based on respective VCC voltage • 1.08 V to 3.6 V on both A and B ports • VCC Isolation feature: If either VCC input is at GND, both ports are in the high-impedance state (excluding pull-ups) • No power-supply sequencing required: either VCCA or VCCB can be ramped first • Low Ioff of 2.
