TCM129C14 COMBINED SINGLE-CHIP PCM CODEC AND FILTER

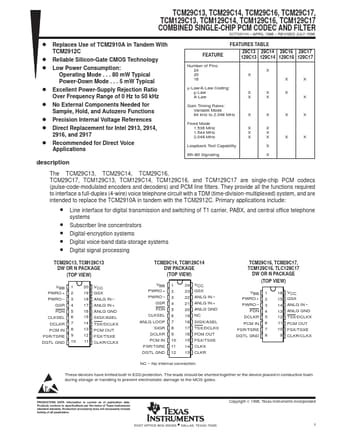

TCM29C13, TCM29C14, TCM29C16, TCM29C17, TCM129C13, TCM129C14, TCM129C16, TCM129C17 COMBINED SINGLE-CHIP PCM CODEC AND FILTER SCTS011H APRIL 1986 REVISED JULY 1996 D Replaces Use of TCM2910A in Tandem With TCM2912C D Reliable Silicon-Gate CMOS Technology D Low Power Consumption: Operating Mode . . . 80 mW Typical Power-Down Mode . . . 5 mW Typical D Excellent Power-Supply Rejection Ratio Over Frequency Range of 0 Hz to 50 kHz D No External Components Needed for Sample, Hold, .

TCM129C14 Features

* TABLE 29C13 29C14 29C16 29C17 129C13 129C14 129C16 129C17 Number of Pins: 24 20 16 X X X X µ-Law/A-Law Coding: µ-Law A-Law X X X X X X Gain Timing Rates: Variable Mode 64 kHz to 2.048 MHz X X X X Fixed Mode 1.536 MHz 1.544 MHz 2.048 MHz X X X X X X X X Loopback Test Capa
