TCM29C14A, TCM29C13A - COMBINED SINGLE-CHIP PCM CODEC AND FILTER

Texas Instruments

📥 Download Datasheet

TCM29C14A Datasheet Preview — This datasheet PDF includes multiple part numbers: TCM29C14A, TCM29C13A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TCM29C14A, TCM29C13A
Manufacturer	Texas Instruments
File Size	387.92 KB
Description	COMBINED SINGLE-CHIP PCM CODEC AND FILTER
Datasheet	TCM29C13A-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TCM29C14A, TCM29C13A. Please refer to the document for exact specifications by model.

TCM29C14A Product details

Description

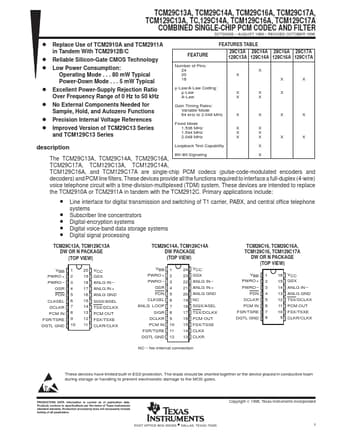

Loopback Test Capability X 8th-Bit Signaling X The TCM29C13A, TCM29C14A, TCM29C16A, TCM29C17A, TCM129C13A, TCM129C14A, TCM129C16A, and TCM129C17A are single-chip PCM codecs (pulse-code-modulated encoders and decoders) and PCM line filters.These devices provide all the functions required to interface a full-duplex (4-wire) voice telephone circuit with a time-division-multiplexed (TDM) system.These devices are intended to replace the TCM2910A or TCM2911A in tandem with the TCM2912C.Pr

Features

TABLE 29C13A 29C14A 29C16A 29C17A 129C13A 129C14A 129C16A 129C17A Number of Pins: 24 20 16 X X X X µ-Law/A-Law Coding: µ-Law X X X A-Law X X Gain Timing Rates: Variable Mode 64 kHz to 2.048 MHz X X X X Fixed Mode 1.536 MHz 1.544 MHz 2.048 MHz X X X X X X X X.
