THS3092 - CURRENT-FEEDBACK OPERATIONAL AMPLIFIERS

Texas Instruments

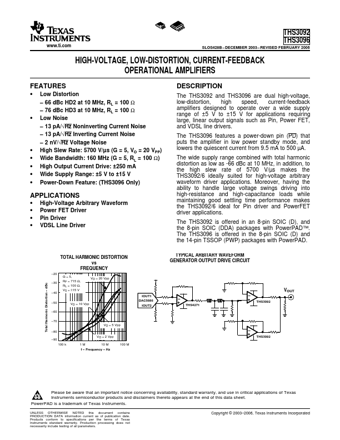

THS3092 Datasheet Preview — Preview of THS3092 PDF

Datasheet Details

Part number	THS3092
Manufacturer	Texas Instruments ↗
File Size	3.40 MB
Description	CURRENT-FEEDBACK OPERATIONAL AMPLIFIERS
Datasheet	THS3092-etcTI.pdf

THS3092 Product details

Description

The THS3092 and THS3096 are dual high-voltage, low-distortion, high speed, current-feedback amplifiers designed to operate over a wide supply range of ±5 V to ±15 V for applications requiring large, linear output signals such as Pin, Power FET, and VDSL line drivers.

Features

Low Distortion.
66 dBc HD2 at 10 MHz, RL = 100 Ω.
76 dBc HD3 at 10 MHz, RL = 100 Ω.
Low Noise.
13 pA/√Hz Noninverting Current Noise.
13 pA/√Hz Inverting Current Noise.
2 nV/√Hz Voltage Noise.
High Slew Rate: 5700 V/µs (G = 5, VO = 20 VPP).
Wide Bandwidth: 160 MHz (G = 5, RL = 100 Ω).
High Output Current Drive: ±250 mA.
Wide Supply Range: ±5 V to ±15 V.
Power-Down Feature: (THS3096 Only) A.
