THS8134 - 80-MSPS VIDEO D/A CONVERTER

Texas Instruments

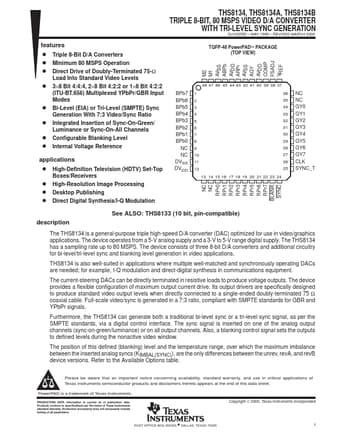

THS8134 Datasheet Preview — Preview of THS8134 PDF

Datasheet Details

Part number	THS8134
Manufacturer	Texas Instruments ↗
File Size	340.31 KB
Description	80-MSPS VIDEO D/A CONVERTER
Datasheet	THS8134-etcTI.pdf

THS8134 Product details

Description

See ALSO: THS8133 (10 bit, pin-compatible) The THS8134 is a general-purpose triple high-speed D/A converter (DAC) optimized for use in video/graphics applications.The device operates from a 5-V analog supply and a 3-V to 5-V range digital supply.The THS8134 has a sampling rate up to 80 MSPS.The device consists of three 8-bit D/A converters and additional circuitry for bi-level/tri-level sync and blanking level generation in video applications.THS8134 is also well-suited in applications whe

Features

D Triple 8-Bit D/A Converters D Minimum 80 MSPS Operation D Direct Drive of Doubly-Terminated 75-Ω Load Into Standard Video Levels D 3×8 Bit 4:4:4, 2×8 Bit 4:2:2 or 1×8 Bit 4:2:2 (ITU-BT.656) Multiplexed YPbPr/GBR Input Modes D Bi-Level (EIA) or Tri-Level (SMPTE) Sync Generation With 7:3 Video/Sync Ratio D Integrated Insertion of Sync-On-Green/ Luminance or Sync-On-All Channels D Configurable Blanking Level D Internal Voltage Reference.
