TL072B, TL071 - Low-Noise JFET-Input Operational Amplifiers

Name: TL072B
SKU: TL072B-1396333

Texas Instruments

📥 Download Datasheet

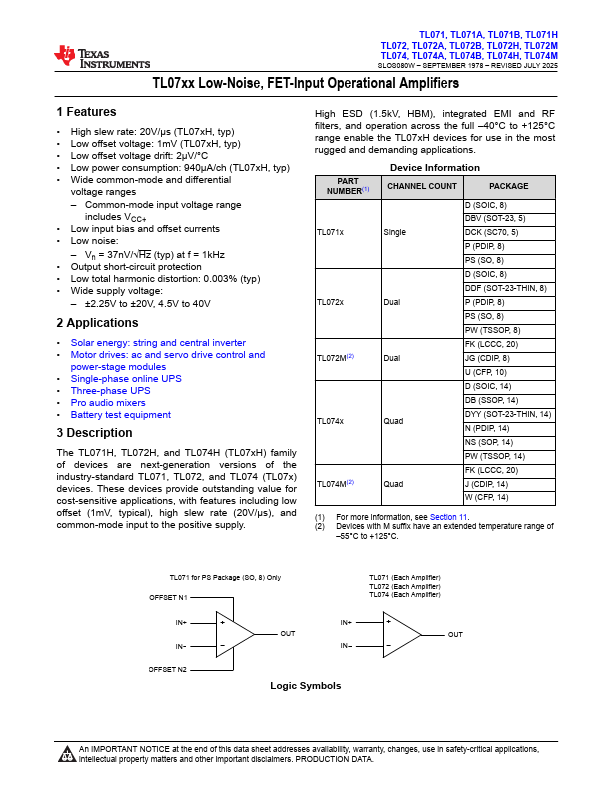

TL072B Datasheet Preview — This datasheet PDF includes multiple part numbers: TL072B, TL071. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TL072B, TL071
Manufacturer	Texas Instruments
File Size	5.73 MB
Description	Low-Noise JFET-Input Operational Amplifiers
Datasheet	TL071-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TL072B, TL071. Please refer to the document for exact specifications by model.

TL072B Product details

Description

The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices.

Features

High slew rate: 20V/μs (TL07xH, typ).
Low offset voltage: 1mV (TL07xH, typ).
Low offset voltage drift: 2μV/°C.
Low power consumption: 940μA/ch (TL07xH, typ).
Wide common-mode and differential voltage ranges.
Common-mode input voltage range includes VCC+.
Low input bias and offset currents.
Low noise:.
Vn = 37nV/√Hz (typ) at f = 1kHz.
Output short-circuit protection.
Low total harmonic distortion:.
