TL081 - JFET-Input Operational Amplifiers

Description

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices.

Features

  • High slew rate: 20V/μs (TL08xH, typ).
  • Low offset voltage: 1mV (TL08xH, typ).
  • Low offset voltage drift: 2μV/°C.
  • Low power consumption: 940μA/ch (TL08xH, typ).
  • Wide common-mode and differential voltage ranges.
  • Common-mode input voltage range includes VCC+.
  • Low input bias and offset currents.
  • Low noise: Vn = 37nV/√Hz (typ) at f = 1kHz.
  • Output short-circuit protection.
  • Low total harmonic distortion: 0.003% (ty.

📥 Download Datasheet

📁 Similar Datasheet

  • TL081 - General purpose JFET single operational amplifiers (STMicroelectronics)
  • TL081 - WIDE BANDWIDTH JFET INPUT OPERATIONAL AMPLIFIER (National Semiconductor)
  • TL081A - GENERAL PURPOSE J-FET SINGLE OPERATIONAL AMPLIFIER (STMicroelectronics)
  • TL081AC - JFET INPUT OPERATIONAL AMPLIFIERS (Motorola)
  • TL081B - GENERAL PURPOSE J-FET SINGLE OPERATIONAL AMPLIFIER (STMicroelectronics)
  • TL081C - JFET INPUT OPERATIONAL AMPLIFIERS (Motorola)
  • TL081C - GENERAL PURPOSE J-FET SINGLE OPERATIONAL AMPLIFIER (STMicroelectronics)
  • TL082 - Wide Bandwidth Dual JFET Input Operational Amplifier (National Semiconductor)
  • TL082 - General purpose JFET dual operation amplifiers (STMicroelectronics)
  • TL082 - GENERAL PURPOSE JFET INPUT OPERATIONAL AMPLIFIERS (Diodes)
Other Datasheets by Texas Instruments
  • TL081A - JFET-Input Operational Amplifiers
  • TL081B - JFET-Input Operational Amplifiers
  • TL081H - JFET-Input Operational Amplifiers
  • TL080 - JFET-INPUT OPERATIONAL AMPLIFIER
  • TL082 - JFET-Input Operational Amplifiers
  • TL082-N - Wide Bandwidth Dual JFET Input Operational Amplifier
  • TL082-Q1 - JFET-INPUT OPERATIONAL AMPLIFIER
  • TL082A - JFET-Input Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

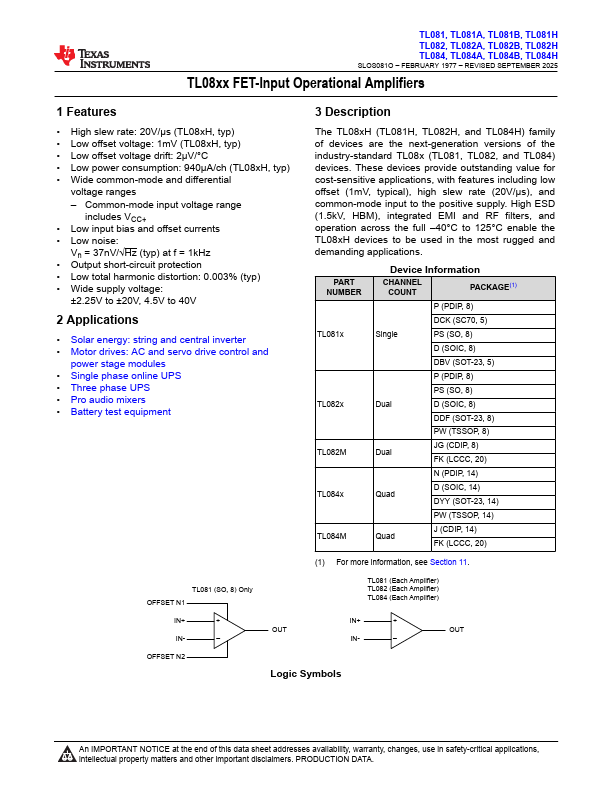

TL081, TL081A, TL081B, TL081H TL082, TL082A, TL082B, TL082H TL084, TL084A, TL084B, TL084H SLOS081O – FEBRUARY 1977 – REVISED SEPTEMBER 2025 TL08xx FET-Input Operational Amplifiers 1 Features • High slew rate: 20V/μs (TL08xH, typ) • Low offset voltage: 1mV (TL08xH, typ) • Low offset voltage drift: 2μV/°C • Low power consumption: 940μA/ch (TL08xH, typ) • Wide common-mode and differential voltage ranges – Common-mode input voltage range includes VCC+ • Low input bias and offset currents • Low noise: Vn = 37nV/√Hz (typ) at f = 1kHz • Output short-circuit protection • Low total harmonic distortion: 0.003% (typ) • Wide supply voltage: ±2.25V to ±20V, 4.
