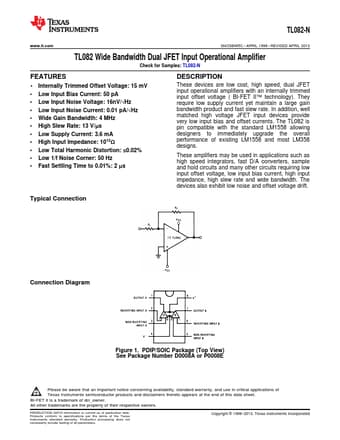

TL082-N Datasheet | Texas Instruments

FEATURES - 23 Internally Trimmed Offset Voltage: 15 m V - Low Input Bias Current: 50 p A - Low Input Noise Voltage: 16n V/√Hz - Low Input Noise Current: 0.01 p A/√Hz - Wide Gain Bandwidth: 4 MHz - High Slew Rate: 13 V/μs - Low Supply Current: 3.6 m A - High Input Impedance: 1012Ω - Low Total Harmonic Distortion: ≤0.02% - Low 1/f Noise Corner: 50 Hz - Fast Settling Time to 0.01%: 2 μs DESCRIPTION These devices are low cost, high speed, dual JFET input operational amplifiers with an internally trimmed input offset voltage ( BI-FET II™ technology). They require low supply current yet maintain a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The TL082 is pin patible with the standard LM1558 allowing designers to immediately upgrade the overall performance of existing LM1558 and most LM358 designs. These amplifiers may be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage, low input bias current, high input impedance, high slew rate and wide bandwidth. The devices also exhibit low noise and offset voltage drift. Typical Connection Connection Diagram Figure 1. PDIP/SOIC Package (Top View) See Package Number D0008A or P0008E Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. BI-FET II is a trademark of dcl_owner. All other trademarks are the property of their respective owners. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 1998- 2013, Texas Instruments Incorporated SNOSBW5C -...
