TLC04 Datasheet - Texas Instruments

TLC04 BUTTERWORTH FOURTH-ORDER LOW-PASS SWITCHED-CAPACITOR FILTERS

D Low Clock-to-Cutoff-Frequency Ratio Error TLC04/MF4A-50 . . . ± 0.8% TLC14/MF4A-100 . . . ± 1% D Filter Cutoff Frequency Dependent Only on External-Clock Frequency Stability D Minimum Filter Response Deviation Due to External Component Variations Over Time and Temperature D Cutoff Frequency Range From 0.1 Hz to 30 kHz, VCC ± = ± 2.5 V D 5-V to 12-V Operation D Self Clocking or TTL-Compatible and CMOS-Compatible Clock Inputs D Low Supply-Voltage Sensitivity D Designed to be Interchangeable With.

TLC04 Features

* cutoff frequency stability that is dependent only on the external-clock frequency stability. The cutoff frequency is clock tunable and has a clock-to-cutoff frequency ratio of 50:1 with less than ± 0. 8% error for the TLC04/MF4A-50 and a clock-to-cutoff frequency ratio of 100:1 with less than ± 1% e

TLC04-etcTI.pdf

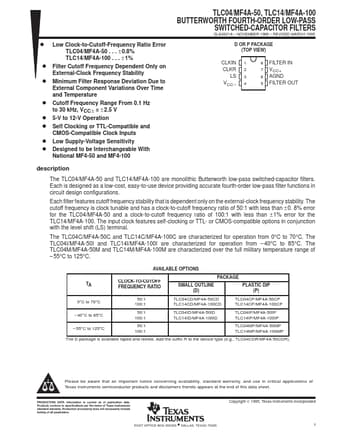

Preview of TLC04 PDF
TLC04 Datasheet Preview Page 2 TLC04 Datasheet Preview Page 3

Datasheet Details

Part number:

TLC04

Manufacturer:

Texas Instruments ↗

File Size:

780.39 KB

Description:

Butterworth fourth-order low-pass switched-capacitor filters.
