TLC555Q, TLC555, Timer

TLC555 SLFS043J * AUGUST 1983 * REVISED NOVEMBER 2023 TLC555 LinCMOS™ Technology Timer 1 .
The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOS™ technology.

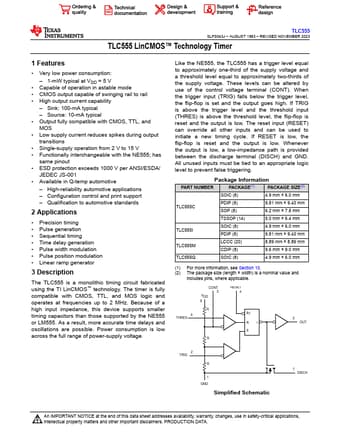

datasheet Preview Page 1 from Datasheet4u.com

TLC555-etcTI.pdf

TLC555Q Datasheet Preview — This datasheet PDF includes multiple part numbers: TLC555Q, TLC555. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TLC555Q, TLC555

Manufacturer:

Texas Instruments ↗

File Size:

1.49 MB

Description:

Timer

Note:

This datasheet PDF includes multiple part numbers: TLC555Q, TLC555.
Please refer to the document for exact specifications by model.

Features

* Very low power consumption:
* 1-mW typical at VDD = 5 V
* Capable of operation in astable mode
* CMOS output capable of swinging rail to rail
* High output current capability
* Sink: 100-mA typical
* Source: 10-mA typical
* Output ful

Applications

* Configuration control and print support
* Qualification to automotive standards 2 Applications
* Precision timing
* Pulse generation
* Sequential timing
* Time delay generation
* Pulse width modulation
* Pulse position modulation
