TLV320AIC3256 - Ultra Low Power Stereo Audio Codec

Datasheet Summary

Description

The TLV320AIC3256 (also called the AIC3256) is a flexible, low-power, low-voltage stereo audio codec with programmable inputs and outputs, PowerTune capabilities, fully-programmable miniDSP, fixed predefined and parameterizable signal processing blocks, integrated PLL, and flexible digital interface

Features

  • 1 Stereo Audio DAC with 100dB SNR.
  • 5.0mW Stereo 48ksps DAC-to-Ground-Centered Headphone Playback.
  • Stereo Audio ADC with 93dB SNR.
  • 5.2mW Stereo 48ksps ADC Record.
  • PowerTune™.
  • Extensive Signal Processing Options.
  • Embedded miniDSP.
  • Six Single-Ended or 3 Fully-Differential Analog Inputs.
  • Stereo Analog and Digital Microphone Inputs.
  • Ground-Centered Stereo Headphone Outputs.
  • Very Low-Noise PGA.

📥 Download Datasheet

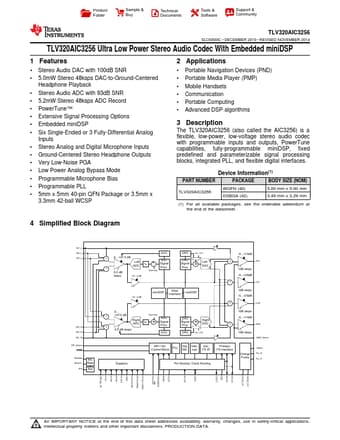

Datasheet preview – TLV320AIC3256

Datasheet Details

Part number TLV320AIC3256
Manufacturer Texas Instruments
File Size 1.52 MB
Description Ultra Low Power Stereo Audio Codec
Datasheet download datasheet TLV320AIC3256 Datasheet
Additional preview pages of the TLV320AIC3256 datasheet.

📁 Similar Datasheet

  • TLV320AIC32 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC31 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC3104 - LOW-POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC33 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320DAC32 - LOW POWER STEREO AUDIO DAC (Burr-Brown)
  • TLV3011 - SOT23 Comparator (Burr-Brown)
  • TLV3012 - SOT23 Comparator (Burr-Brown)
  • TLV3491 - 1.8V/ Nanopower PUSH-PULL OUTPUT COMPARATOR (Burr-Brown Corporation)
  • TLV3491AID - 1.8V/ Nanopower PUSH-PULL OUTPUT COMPARATOR (Burr-Brown Corporation)
  • TLV3491AIDBVR - 1.8V/ Nanopower PUSH-PULL OUTPUT COMPARATOR (Burr-Brown Corporation)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TLV320AIC3256 SLOS630C – DECEMBER 2010 – REVISED NOVEMBER 2014 TLV320AIC3256 Ultra Low Power Stereo Audio Codec With Embedded miniDSP 1 Features •1 Stereo Audio DAC with 100dB SNR • 5.0mW Stereo 48ksps DAC-to-Ground-Centered Headphone Playback • Stereo Audio ADC with 93dB SNR • 5.2mW Stereo 48ksps ADC Record • PowerTune™ • Extensive Signal Processing Options • Embedded miniDSP • Six Single-Ended or 3 Fully-Differential Analog Inputs • Stereo Analog and Digital Microphone Inputs • Ground-Centered Stereo Headphone Outputs • Very Low-Noise PGA • Low Power Analog Bypass Mode • Programmable Microphone Bias • Programmable PLL • 5mm x 5mm 40-pin QFN Package or 3.5mm x 3.
