TM4CN64EFH Datasheet - Texas Instruments

TM4CN64EFH 64-bit SDRAM

The TM2CN64EFH is a 16M-byte, 168-pin dual-in-line memory module (DIMM). The DIMM is composed of eight TMS626812BDGE 2097 152 x 8-bit SDRAMs, each in a 400-mil, 44-pin plastic thin small-outline package (TSOP) mounted on a substrate with decoupling capacitors. See the TMS626812B data sheet (literatu.

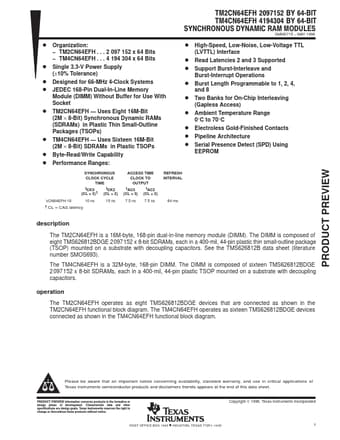

TM2CN64EFH 2ā097ā152 BY 64ĆBIT TM4CN64EFH 4ā194ā304 BY 64ĆBIT SYNCHRONOUS DYNAMIC RAM MODULES SMMS715 MAY 1998 D Organization: TM2CN64EFH . . . 2 097 152 x 64 Bits TM4CN64EFH . . . 4 194 304 x 64 Bits D Single 3.3-V Power Supply (±10% Tolerance) D Designed for 66-MHz 4-Clock Systems D JEDEC 168-Pin Dual-In-Line Memory Module (DIMM) Without Buffer for Use With Socket D TM2CN64EFH Uses Eight 16M-Bit (2M × 8-Bit) Synchronous Dynamic RAMs (SDRAMs) in Plastic .

TM4CN64EFH Datasheet (247.72 KB)
