TM4TR72EPH SYNCHRONOUS DYNAMIC RAM

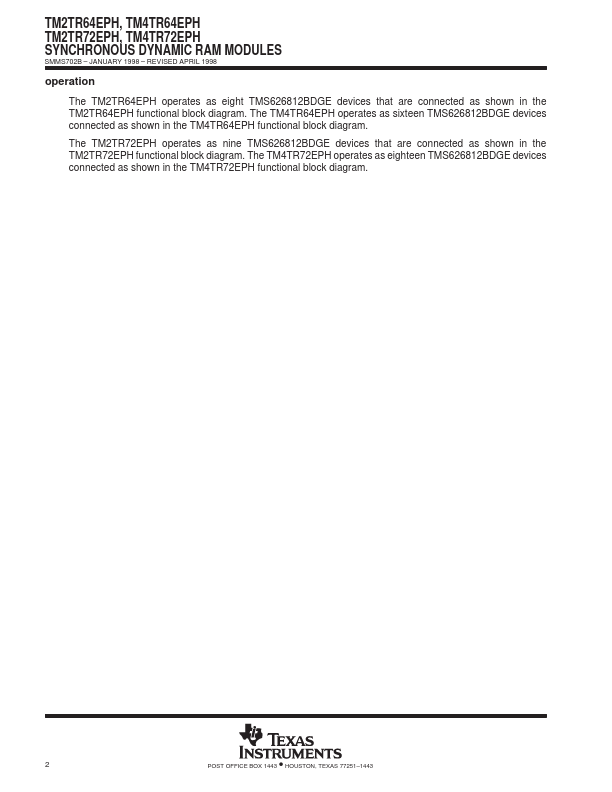

The TM2TR64EPH is a 16M-byte, 168-pin DIMM. The DIMM is composed of eight TMS626812BDGE 2 097 152 x 8-bit SDRAMs, each in a 400-mil, 44-pin plastic TSOP mounted on a substrate with decoupling capacitors. See the TMS626812B data sheet (literature number SMOS693). The TM4TR64EPH is a 32M-byte, 168-pin.

D Organization: TM2TR64EPH . . . 2 097 152 x 64 Bits TM4TR64EPH . . . 4 194 304 x 64 Bits TM2TR72EPH . . . 2 097 152 x 72 Bits TM4TR72EPH . . . 4 194 304 x 72 Bits D Single 3.3-V Power Supply (±10% Tolerance) D Designed for 100-MHz 4-Clock Systems D TM2TR64EPH Uses Eight 16M-Bit Synchronous Dynamic RAMs (SDRAMs) (2M × 8-Bit) in Plastic Thin Small-Outline Packages (TSOPs) D TM4TR64EPH Uses Sixteen 16M-Bit SDRAMs (2M × 8-Bit) in Plastic T.
