TMAG5111-Q1 - Dual-Channel High-Sensitivity Hall-Effect Latch

This page provides the datasheet information for the TMAG5111-Q1, a member of the TMAG5110-Q1 Dual-Channel High-Sensitivity Hall-Effect Latch family.

Description

The TMAG5110-Q1 and TMAG5111-Q1 are 2-dimensional, dual Hall-effect latches operating from a 2.5V to 38V power supply.

Designed for highspeed and high-temperature motor applications, these devices are optimized for applications leveraging rotating magnets.

Features

  • AEC-Q100 qualified with the following results:.
  • Device temperature grade 1:.
  • 40°C to 125°C ambient operating temperature range.
  • Device HBM ESD classification Level H3A.
  • Device CDM ESD classification Level C6.
  • Functional Safety-Capable.
  • Documentation available to aid functional safety system design.
  • 2D sensing with planar and vertical hall sensors.
  • Inherent quadrature independent of magnet alignment or magnet pole pi.

📥 Download Datasheet

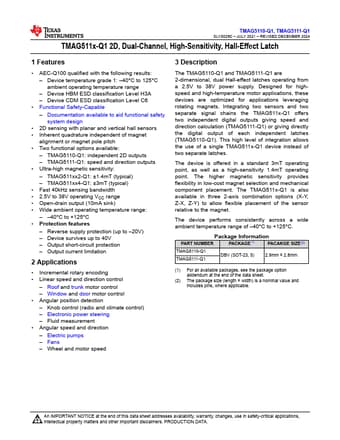

Datasheet preview – TMAG5111-Q1

Datasheet Details

Part number TMAG5111-Q1
Manufacturer Texas Instruments
File Size 2.09 MB
Description Dual-Channel High-Sensitivity Hall-Effect Latch
Datasheet download datasheet TMAG5111-Q1 Datasheet
Additional preview pages of the TMAG5111-Q1 datasheet.

📁 Similar Datasheet

  • TMA0505D - DC/DC Converter (TRACO POWER)
  • TMA0505S - DC/DC Converter (TRACO POWER)
  • TMA0512D - DC/DC Converter (TRACO POWER)
  • TMA0512S - DC/DC Converter (TRACO POWER)
  • TMA0515D - DC/DC Converter (TRACO POWER)
  • TMA0515S - DC/DC Converter (TRACO POWER)
  • TMA100A - Current Transducer (Topstek)
  • TMA1205D - DC/DC Converter (TRACO POWER)
  • TMA1205S - DC/DC Converter (TRACO POWER)
  • TMA1212D - DC/DC Converter (TRACO POWER)
Other Datasheets by Texas Instruments
  • TMAG5111 - Dual-Channel High-Sensitivity Hall-Effect Latch
  • TMAG5110 - Dual-Channel High-Sensitivity Hall-Effect Latch
  • TMAG5110-Q1 - Dual-Channel High-Sensitivity Hall-Effect Latch
  • TMAG5123 - Hall-Effect Switch
  • TMAG5123-Q1 - Automotive Hall-Effect Switch
  • TMAG5124 - Hall-Effect Switch Sensor
  • TMAG5124-Q1 - Automotive Hall-Effect Switch Sensor
  • TMAG5170 - High-Precision 3D Linear Hall-Effect Sensor

Full PDF Text Transcription

Click to expand full text
TMAG5110-Q1, TMAG5111-Q1 SLYS029C – JULY 2021 – REVISED DECEMBER 2024 TMAG511x-Q1 2D, Dual-Channel, High-Sensitivity, Hall-Effect Latch 1 Features • AEC-Q100 qualified with the following results: – Device temperature grade 1: –40°C to 125°C ambient operating temperature range – Device HBM ESD classification Level H3A – Device CDM ESD classification Level C6 • Functional Safety-Capable – Documentation available to aid functional safety system design • 2D sensing with planar and vertical hall sensors • Inherent quadrature independent of magnet alignment or magnet pole pitch • Two functional options available: – TMAG5110-Q1: independent 2D outputs – TMAG5111-Q1: speed and direction outputs • Ultra-high magnetic sensitivity: – TMAG511xx2-Q1: ±1.
