TMDS141

HDMI HIDER

TMDS141 Features

* 1

* 23 Supports 2.25 Gbps Signaling Rate for up to 1080p Resolutions Supporting 36-bits Per Pixel for Color Depth of 12-bits Per Color

* Compatible with HDMI 1.3a

* Integrated Receiver Termination

* 8-dB Equalizer Compensates Losses from 5-m or Longer HDMI Cables

TMDS141 General Description

The TMDS141 HDMI hider is designed to accommodate a 1-m HDMI cable between a HDMI connector and a receiver. The internal cable causes signal distortion to high-speed TMDS signals, as well as increasing capacitance to the DDC channel. Each TMDS141 contains four TMDS repeaters to transmit digital cont.

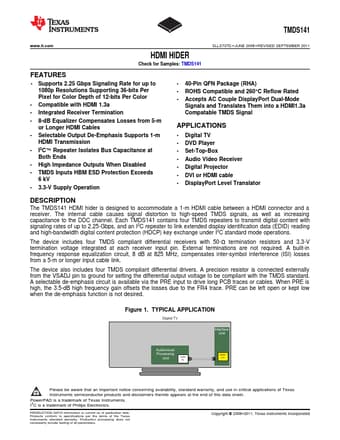

TMDS141 Datasheet (0.97 MB)
