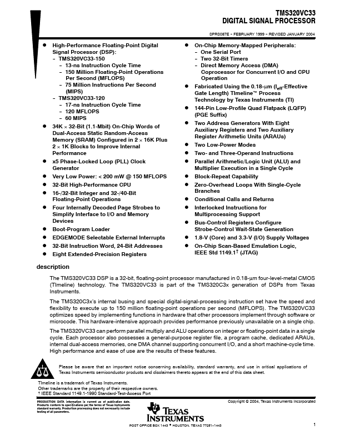

TMS320VC33 DIGITAL SIGNAL PROCESSOR

The TMS320VC33 DSP is a 32-bit, floating-point processor manufactured in 0.18-μm four-level-metal CMOS (TImeline) technology. The TMS320VC33 is part of the TMS320C3x generation of DSPs from Texas Instruments. The TMS320C3x’s internal busing and special digital-signal-processing instruction set have .

TMS320VC33 DIGITAL SIGNAL PROCESSOR D High-Performance Floating-Point Digital Signal Processor (DSP): TMS320VC33-150 13-ns Instruction Cycle Time 150 Million Floating-Point Operations Per Second (MFLOPS) 75 Million Instructions Per Second (MIPS) TMS320VC33-120 17-ns Instruction Cycle Time 120 MFLOPS 60 MIPS D 34K × 32-Bit (1.1-Mbit) On-Chip Words of Dual-Access Static Random-Access Memory (SRAM) Configured in 2 × 16.

TMS320VC33 Features

* Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. TImeline is a trademark of Texas Instruments. Other trademarks are the p
