TP13067A, TP13064A Datasheet - Texas Instruments

TP13067A MONOLITHIC SERIAL INTERFACE COMBINED PCM CODEC AND FILTER

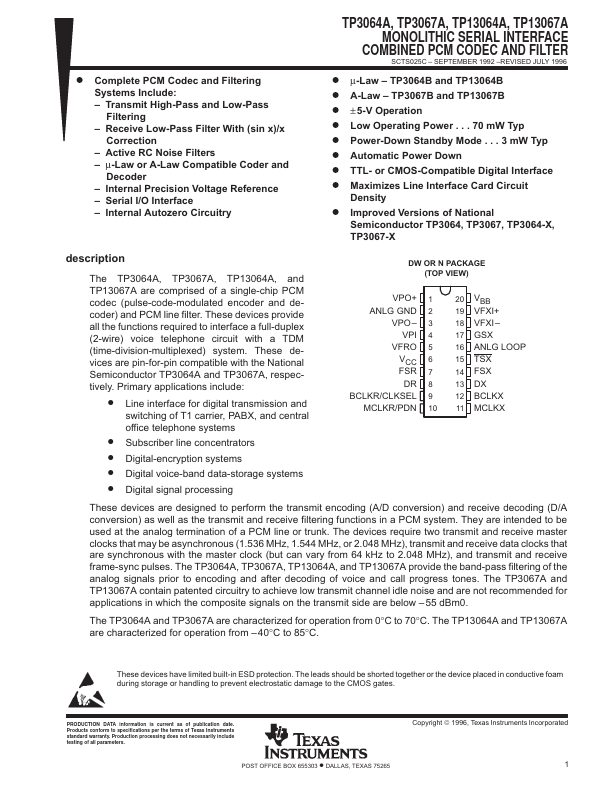

The TP3064A, TP3067A, TP13064A, and TP13067A are comprised of a single-chip PCM codec (pulse-code-modulated encoder and decoder) and PCM line filter. These devices provide all the functions required to interface a full-duplex (2-wire) voice telephone circuit with a TDM (time-division-multiplexed) sy.
D Complete PCM Codec and Filtering Systems Include: Transmit High-Pass and Low-Pass Filtering Receive Low-Pass Filter With (sin x)/x Correction Active RC Noise Filters ยต-Law or A-Law Compatible Coder and Decoder Internal Precision Voltage Reference Serial I/O Interface Internal Autozero Circuitry TP3064A, TP3067A, TP13064A, TP13067A MONOLITHIC SERIAL INTERFACE COMBINED PCM CODEC AND FILTER SCTS025C SEPTEMBER 1992

TP13064A-etcTI.pdf

This datasheet PDF includes multiple part numbers: TP13067A, TP13064A. Please refer to the document for exact specifications by model.

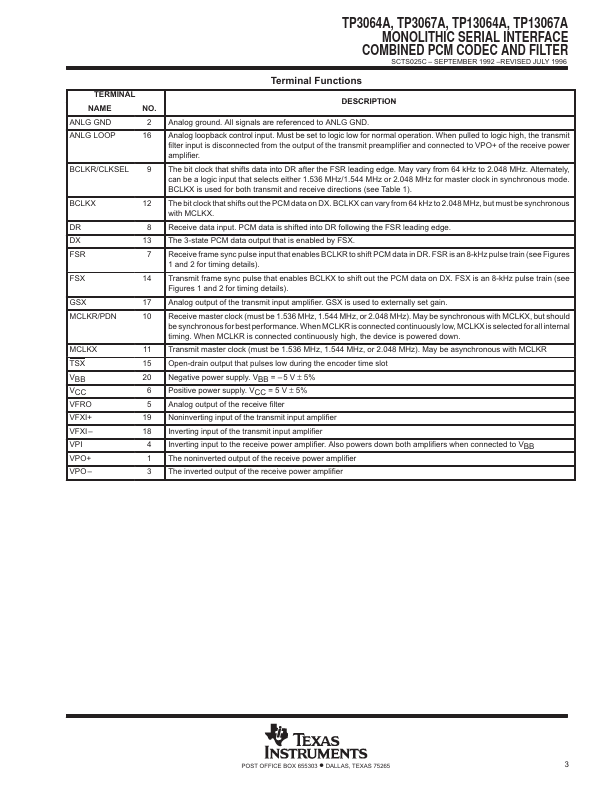

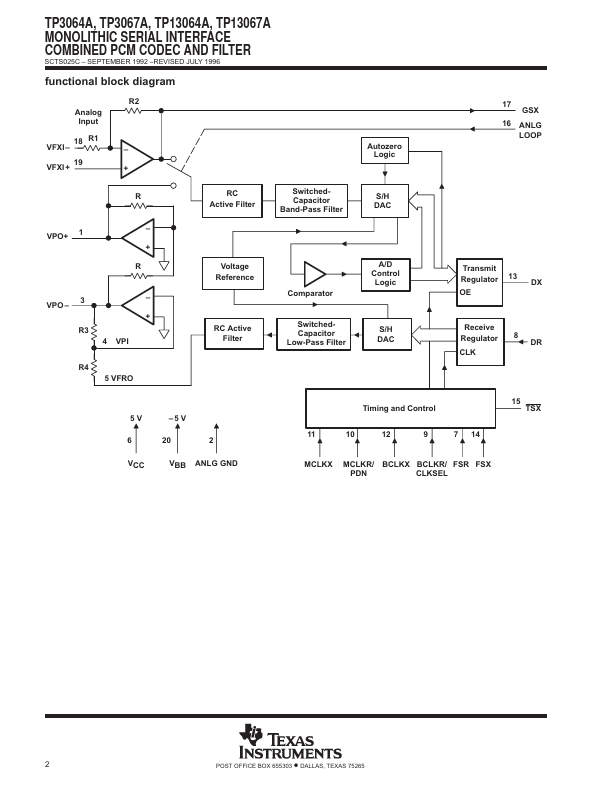

TP13067A Datasheet Preview Page 2 TP13067A Datasheet Preview Page 3

Datasheet Details

Part number:

TP13067A, TP13064A

Manufacturer:

Texas Instruments ↗

File Size:

290.91 KB

Description:

Monolithic serial interface combined pcm codec and filter.

Note:

This datasheet PDF includes multiple part numbers: TP13067A, TP13064A.
Please refer to the document for exact specifications by model.
